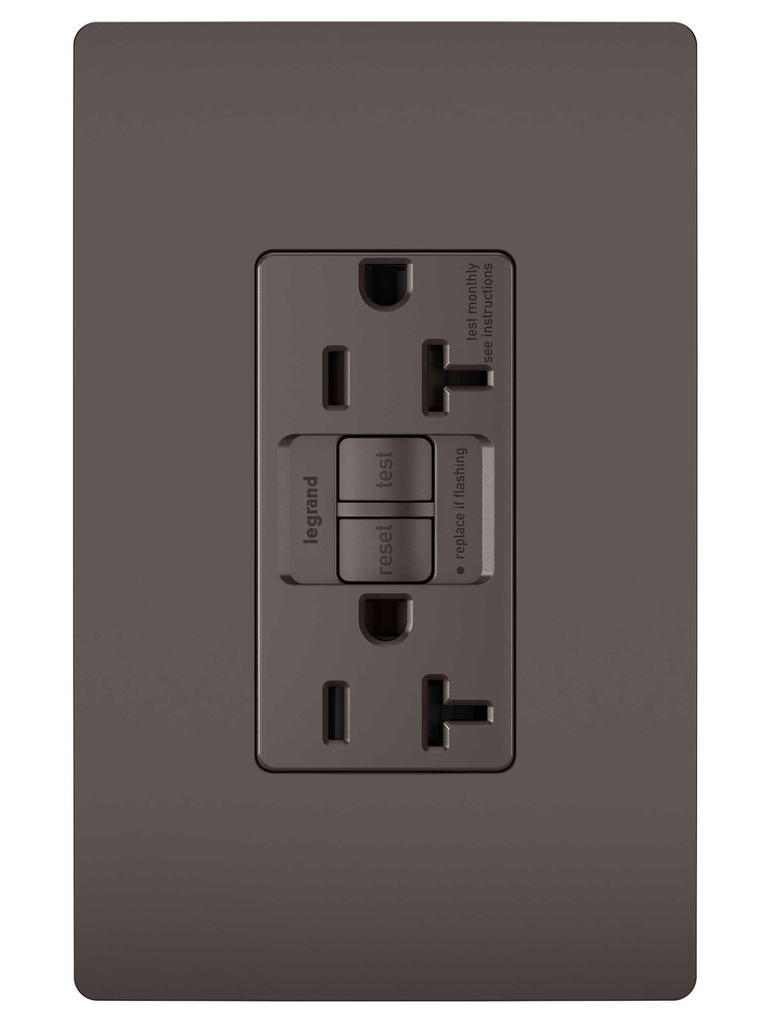

Product image for Pass & Seymour 2097-TR 20A 125V Self-Test Tamper-Resistant GFCI Brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour 2097-TR 20A 125V Self-Test Tamper-Resistant GFCI Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097TR | Cooper Electric Part # 1021983
$28.52/ea
ea
Log in or register to view your price, purchase history, and more!
15A 20A
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
48 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI Receptacles installed in the living space. radiant® Screwless Wall Plate not included. For detailed GFCI receptacle information, visit our GFCI Headquarters. Meet code and reduce callbacks by pairing GFCI receptacles with AFCI breakers on kitchen and laundry room circuits.  Learn more at www.legrand.us/gfci.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial, Residential Grade
Connection Type
Back and Side Wire
Grade
Specification
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Flush
NEMA
20A
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Indoor,Self-Test,Tamper-Resistant
TC Connection
Back and Side Wire
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 to 6 mA
Trip Type
.025 Second Nominal
Type
Tamper-Resistant, Self-Test
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007036152
Color
Brown
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Gloss
GTiN
00785007036152
Product UPC
78500703615
Weight
3.59 oz

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • Replaces any standard receptacle with ease, in as little as 10 minutes.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • 10kA short circuit rating
  • 20 Amp feed-thru capacity
Certifications
  • UL Listed
  • cULus Listed
