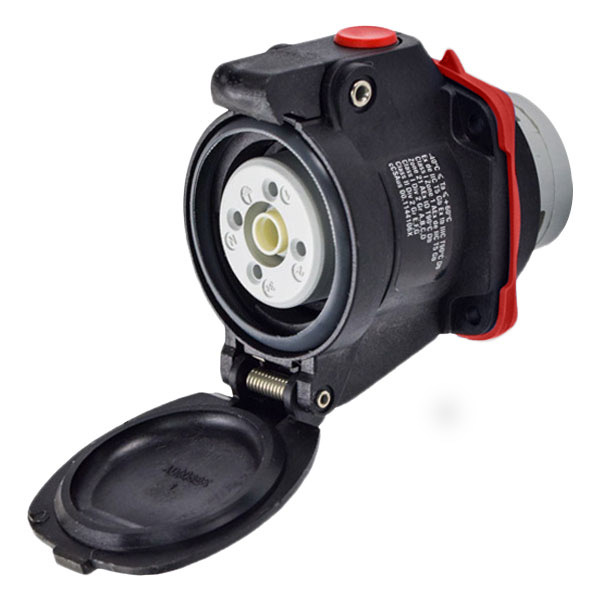

Product image for Meltric 22-34047 DXN30 Receptacle, Poly, Black, Size 2, IP66/IP67, 3P+N+G, 30A, 277/480 VAC, 60 Hz
Email

Meltric 22-34047 DXN30 Receptacle, Poly, Black, Size 2, IP66/IP67, 3P+N+G, 30A, 277/480 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 22-34047 | Cooper Electric Part # 1020895
$739.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Receptacle, With Neutral, Ground, Application: Refineries, Silos, Hazardous Environment, Standard: CSA, IEC, ATEX, Number Of Poles: 3, Number Of Wires: 5, Wire Size: 14 to 6AWG, Amperage Rating: 30AMP, Voltage Rating: 480V, Material: Polyester, Color: Bla

Technical Information

Amperage
30 Amp
Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Conductor Size
14-6 AWG
Contact Configuration
3P+N+G
Current
30 Amp
Frequency
60 Hz
Horsepower
10 hp
IP Rating
66,67
Material
Polyester
Max Operating Temperature
140 degrees F
Number of Poles
3 Pole
Number of Wires
5 Wire
Short Circuit Current Ratng
400 %
Size
2
Standard
CSA,UL E3803
Strip Length
13/16 in
Type
Receptacle
Voltage
277 Volt
Wire Size
14-6 AWG

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474613293
Color
Black
Environmental Conditions
95% Relative Humidity
GTiN
00784474613293
Product Series
37
Product UPC
78447461329

Certifications and Compliance

CSA
208161,C22.2 No. 182.1-13,CCSAus
Ex Ratings
  • -40C < Ta < +60C
  • Ex de IIC T5 Gb Ex tb IIIC T77C Db
Hazardous Location Ratings
  • -40C < Ta < +60C
  • Class l Zone1 AEx de llC T5 Gb
  • Zone 21 AEx tD T77C Db
  • Class I Div 2 Gr A,B,C,D
  • Class II Div 2 Gr E,F,G
