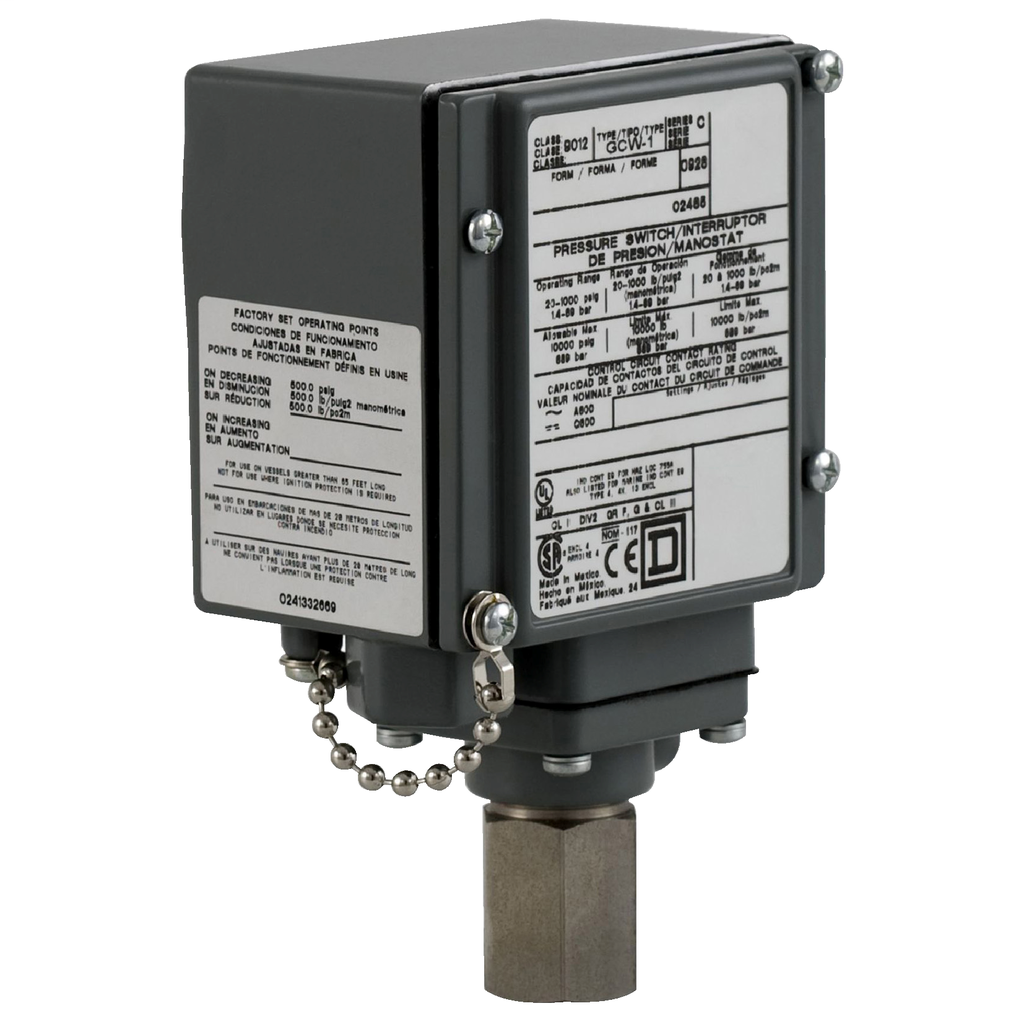

Product image for Square D 9012GFW22Z18 600 VAC/VDC DPDT 4-Circuit 90 to 2900 PSIG Non-Adjustable Differential Pressure Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 9012GFW22Z18 600 VAC/VDC DPDT 4-Circuit 90 to 2900 PSIG Non-Adjustable Differential Pressure Switch

Manufacturer: Square-D / Schneider | Catalog # 9012GFW22Z18 | Cooper Electric Part # 1019999
$693.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Square D,PRESSURE SWITCH TYPE G OPTIONS,-10...185 .F,0.44 inch 20 UNF-2B conforming to UL 508,0.5 inch NPT conduit entrance,120 operating cycles per minute (max),2900 psi,90...2900 psi,DPDT (isolated),Fixed Differential,NEMA 4/4X/13,Pressure Switch,Single Stage,UL, CSA, IEC, CE-marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),air-non-corrosive liquids-hydraulic oil (-15...250 .F)-hydraulic oil (-15...250 .F)-non-corrosive gas

Technical Information

Amperage
6 Amp
Applications
DETECTION OF 1 SINGLE THRESHOLD
Contact Configuration
2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS
Enclosure
NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380
Enclosure Material
Aluminum
Operating Cycles
120 cyc/mn
Operating Temperature
-10-185 Adegrees F
Standard
CE,CSA C22.2 No 14,UL 508
Type
6 A 120 V AC-0.22 A 125 V DC-3 A 240 V AC-0.27 A 250 V DC,ELECTROMECHANICAL PRESSURE SWITCH,FIXED

Manufacturer Information

Brand
Square D
Sub Brand
9012G

General Product Info

12-Digit UPC
785901149200
GTiN
00785901149200
Product UPC
78590114920
Weight
3 lb

Dimensions

Depth
2.63 Inch
Height
5.55 Inch
Warranty Length
18 mth
Width
3.5 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CE,CSA LR25490 Class 3211 03,UL Listed File E12158 CCN NKPZ
Country of Origin
Mexico
