3M 567-BIN 1000/Box Insulation Displacement Connector (7000005879)

Manufacturer: 3M | Catalog # 7000005879 | Cooper Electric Part # 101898
$1.37/ea
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

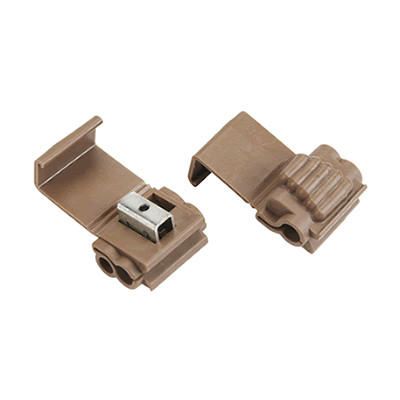

3M™ Scotchlok™ Insulation Displacement Connector 567 electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.

Technical Information

Conductor Size
16 AWG
Connection Type
Run And Tap
Insulation Material
Polypropylene
Material
Brass
Max Operating Temperature
105.0 degrees C
Temperature Rating
221 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-14 AWG (Tap)/12-10 AWG (Run)

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007148951
Color
Brown
GTiN
00054007148951
Product Type
Run & Tap
Product UPC
05400714895

Certifications and Compliance

Country of Origin
USA
Features
  • WIRE RANGE: Connects 18-14 AWG (Tap) and 12-10 AWG (Run)

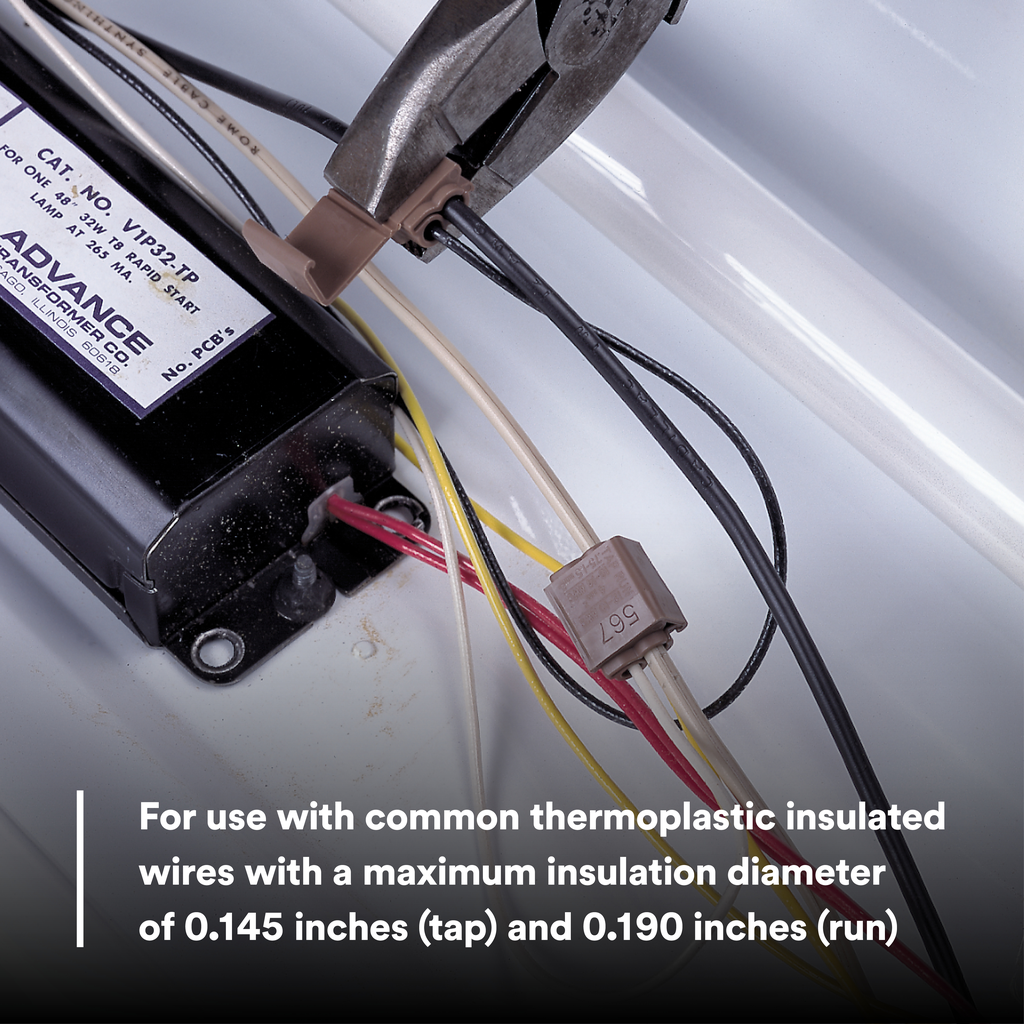

  • COMPATIBILITY: For use with common thermoplastic insulated wires with a maximum insulation diameter of 0.145 inches (tap) and 0.190 inches (run)

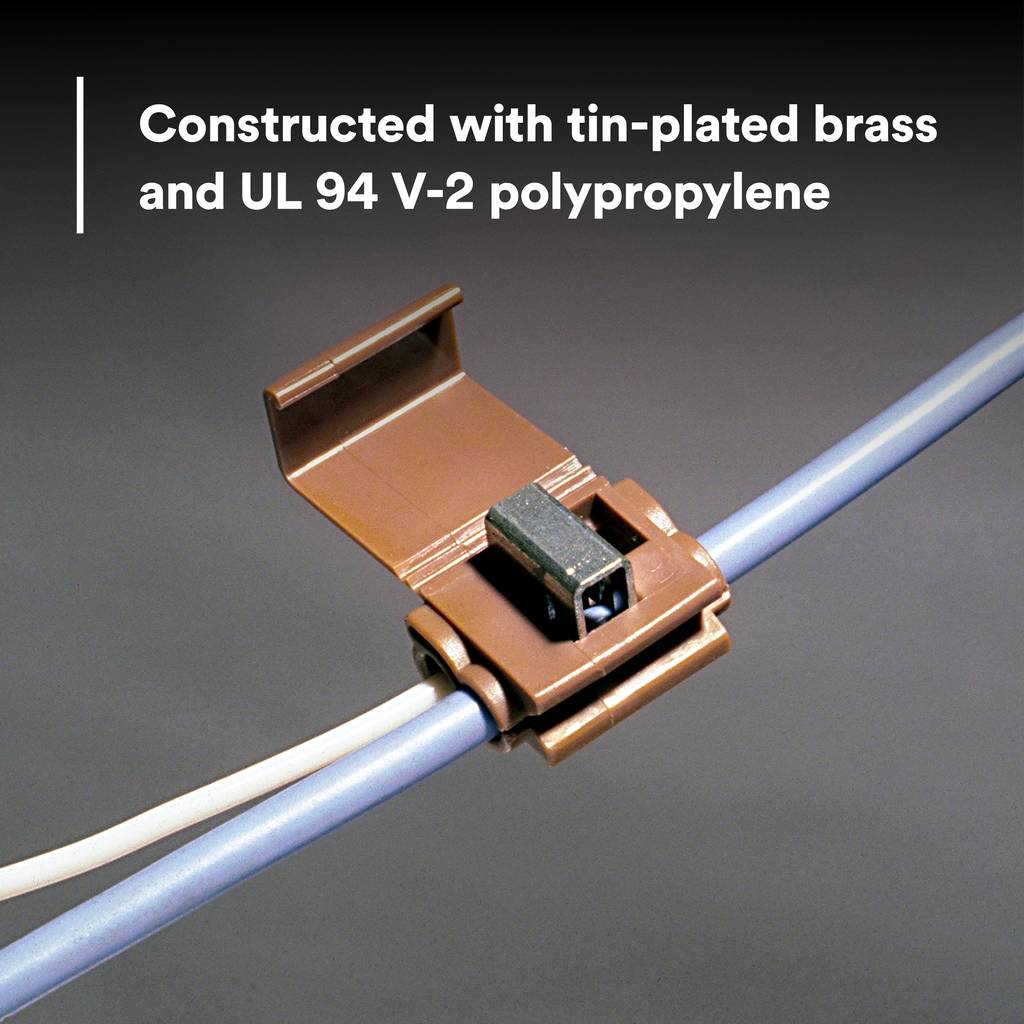

  • BUILT TOUGH: Constructed with tin-plated brass and UL 94 V-2 polypropylene

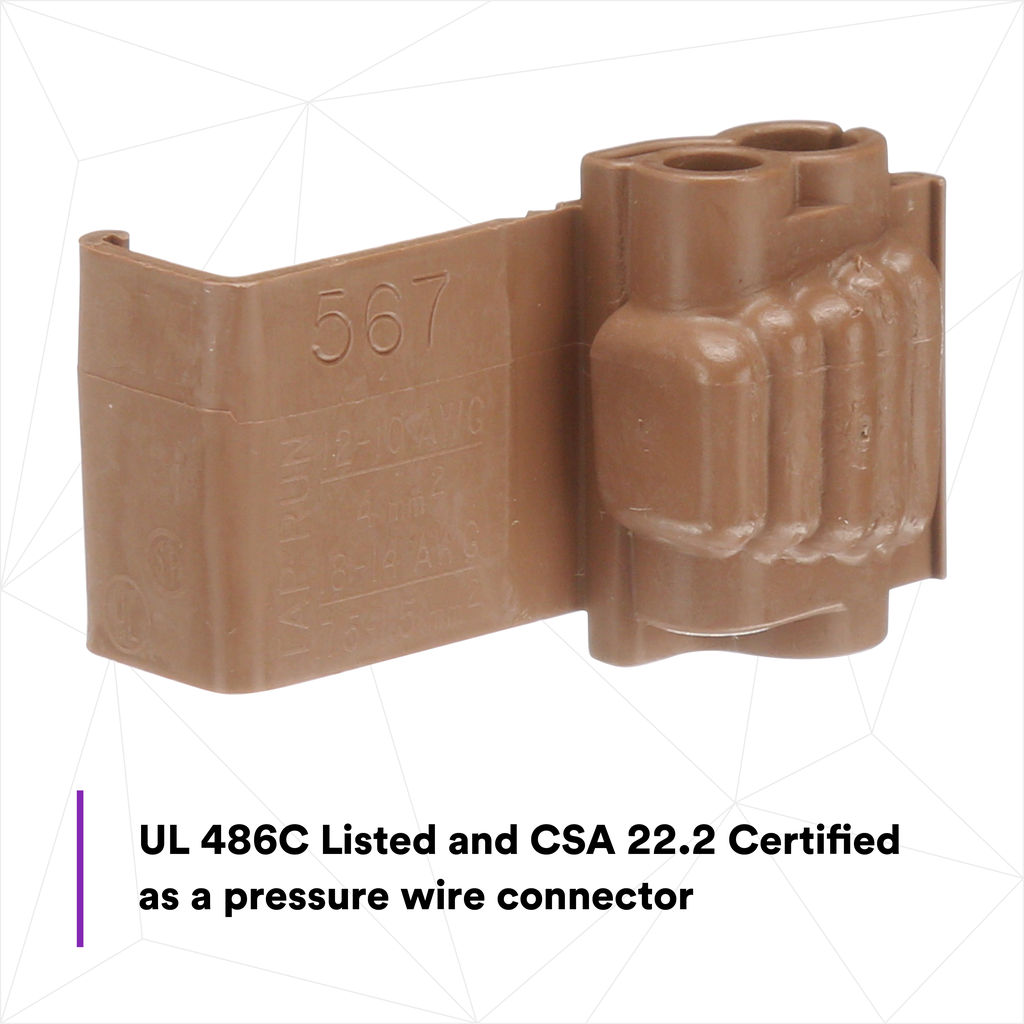

  • UL LISTED AND CSA CERTIFIED: UL 486C Listed and CSA 22.2 Certified as a pressure wire connector
  • COMPLIANCE INFORMATION: For more information, visit www.3m.com/regs
