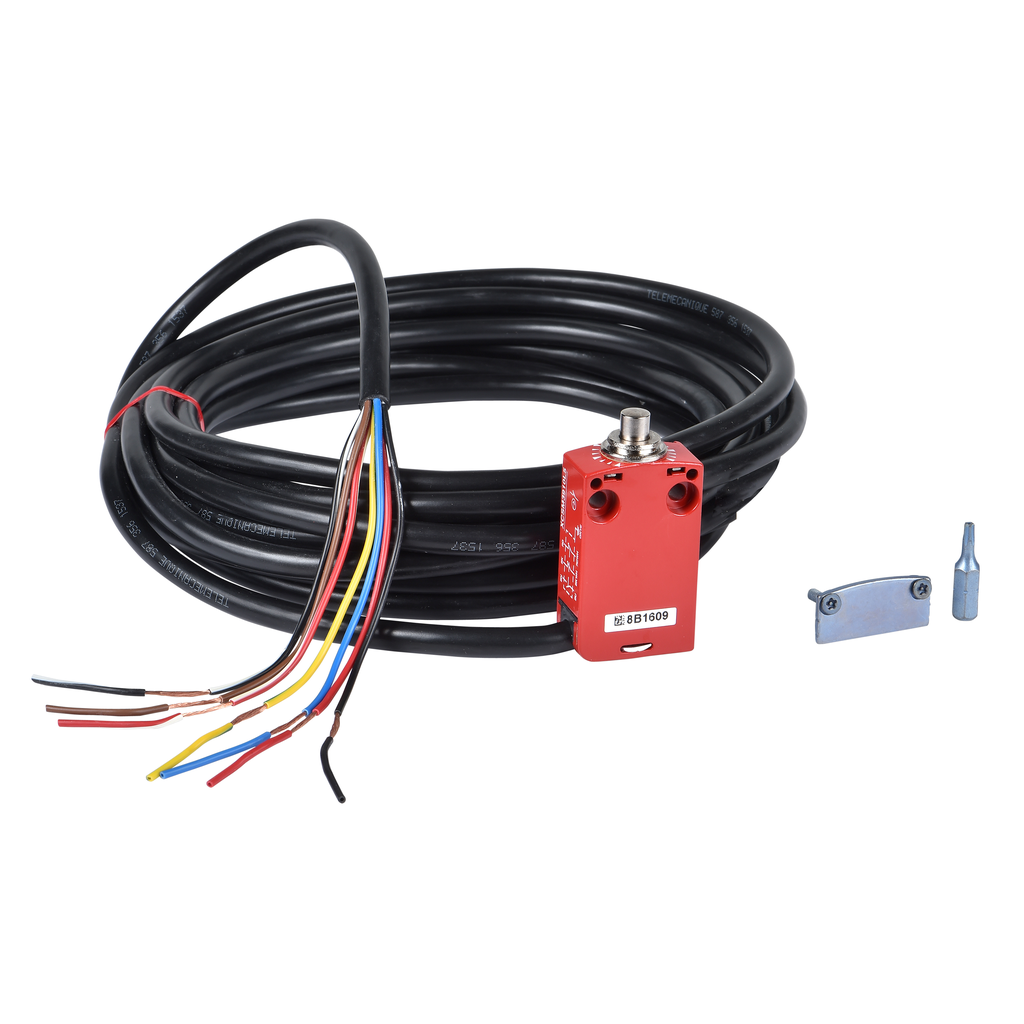

Product image for TES XCSM4102L5 Safety limit switch, TES Safety switches XCS, XCSM, metal, roller plunger, 2 NC + 2 NO, cable 5 m
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES XCSM4102L5 Safety limit switch, TES Safety switches XCS, XCSM, metal, roller plunger, 2 NC + 2 NO, cable 5 m

Manufacturer: TES Electric | Catalog # XCSM4102L5 | Cooper Electric Part # 1018828
$174.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This XCSM Miniature Safety Limit Switch has a roller plunger, a Zamak body and head and a 5 meter pre-cabled. It has 2 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 / IP68 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Technical Information

Action
Snap action;By 30? cam;Lateral approach
Actuator
Roller plunger
Applications
PLUNGER HEAD
Body Material
Zamak
Contact Configuration
1 NC + 1 NC + 1 NO + 1 NO
Head Type
Plunger head
Material
Metal
Net Weight
0.17 kg
Number of Poles
4 Pole
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,EN 1088,EN/IEC 60204-1,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
Pre-cabled
Type
Safety limit switch

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCSM

General Product Info

12-Digit UPC
785901859765
GTiN
03389110244311
Product UPC
78590185976
Weight
0.37 lb

Dimensions

Cable Length
5 m
Depth
16 mm
Height
70-70 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Indonesia
