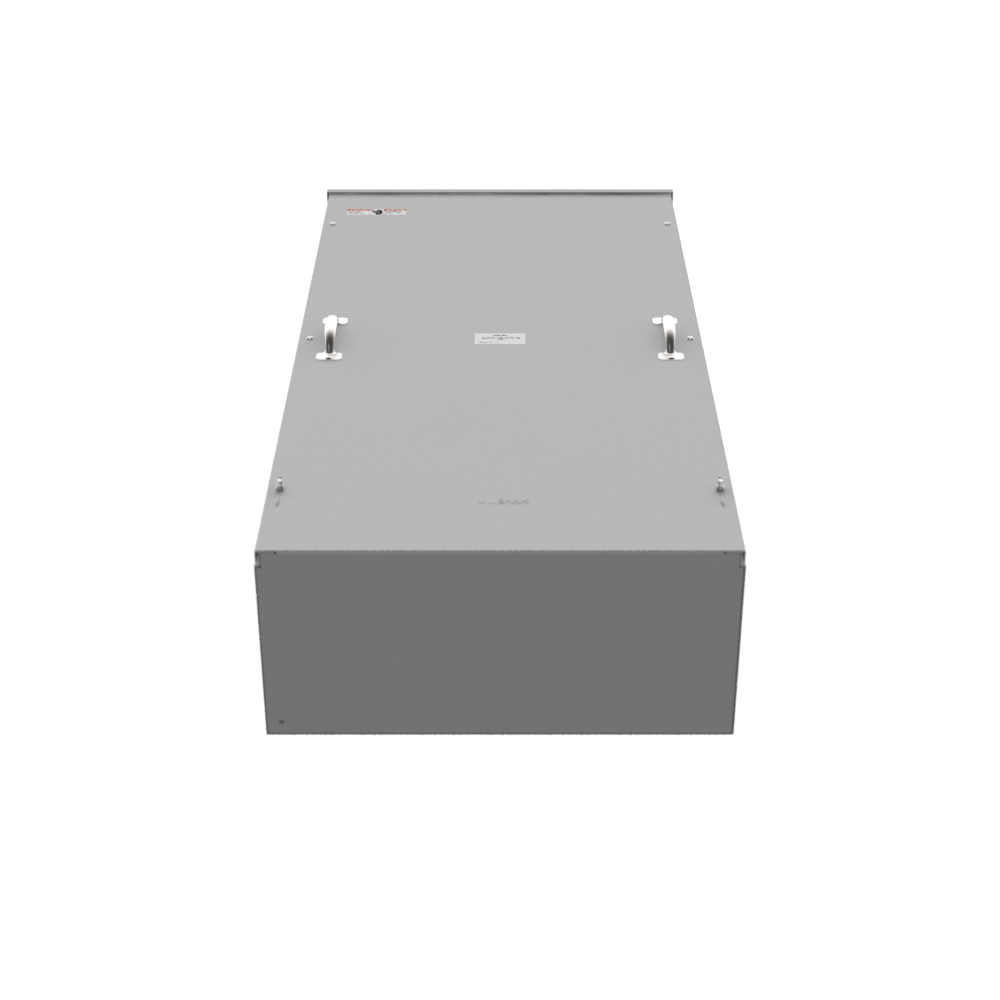

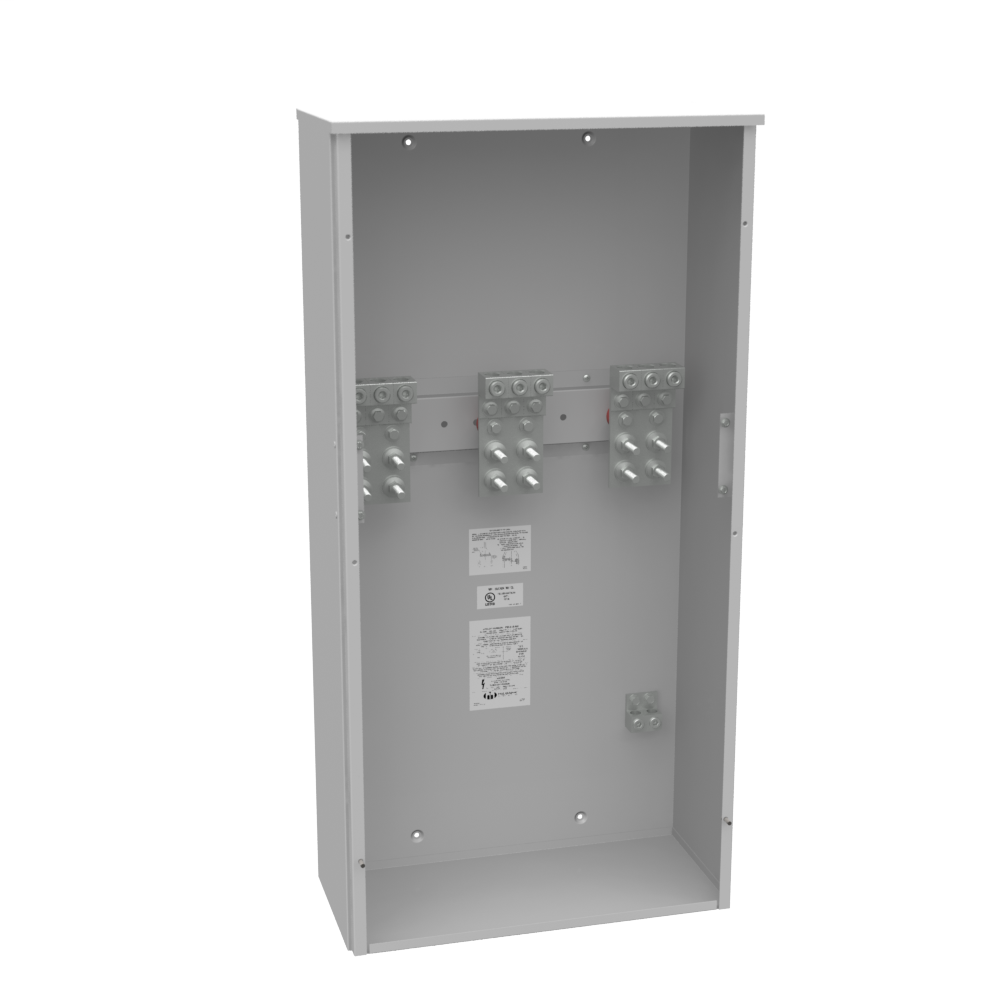

Product image for Milbank PB-018-NK 800 Ampere 1phase 600 Volt 24in-48in-11in Painted Steel No Knockouts Lift Off Screw Front .5-13 Studs 3 Lug Per Landing - 4-600kcmil 10k Ampere Interrupting Capacity
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Milbank PB-018-NK 800 Ampere 1phase 600 Volt 24in-48in-11in Painted Steel No Knockouts Lift Off Screw Front .5-13 Studs 3 Lug Per Landing - 4-600kcmil 10k Ampere Interrupting Capacity

Manufacturer: Milbank Mfg. Co | Catalog # PB-018-NK | Cooper Electric Part # 1018692
$2,103.21/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
800 AMP 1 PH 600 VOLT 24IN-48IN-11IN PNTD STL NO KO LIFT OFF SCR FRONT .5-13 STUDS 3 LUG PER LND - 4-600kcmil 10K AIC

Technical Information

Amperage
800 Amp
Applications
Termination Cabinet
Conductor Material
Copper and Aluminum
Connection Type
3 Positionss 1/2 Inch Stud Line Side,3 Positionss 4 AWG To 600 Kcmil Load Side Lugs
Insulation Material
Polypropylene
Material
Steel
Number of Conductors
3
Number of Phases
1 Phase
Short Circuit Current
50000 A
Size
11L x 24W x 48H
Standard
Type 3R,UL Listed
TC Connection
1/2 Inch Stud Load Side and 4 AWG to 600 kcmil Line Side Lugs
Type
Line To Load Distribution
Voltage
600 Volt

Manufacturer Information

Brand
Milbank Manufacturing

General Product Info

12-Digit UPC
784572234253
Color
Gray
Construction
G90 Galvanized Steel
Construction Features
G90 Galvanized Steel,Type 3R
Finish
Powder Coated
GTiN
00784572234253
Jacket Material
No Jacket Material
Product UPC
78457223425

Dimensions

Height
48 Inch
Length
11 Inch
Width
24 in
