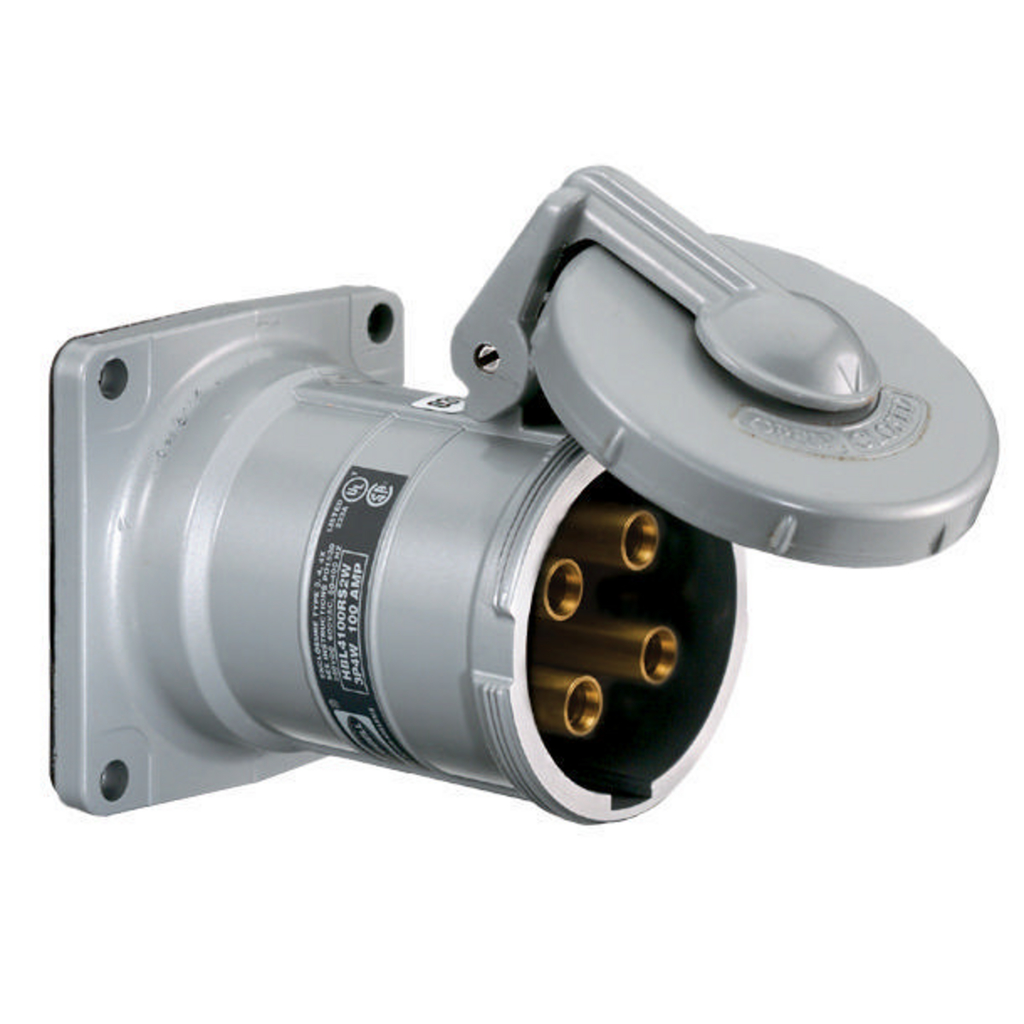

Product image for HCI HBL3100RS1WR PS, INS, RECP, 2P3
Email

HCI HBL3100RS1WR PS, INS, RECP, 2P3

Manufacturer: Hubbell Wiring Device | Catalog # HBL3100RS1WR | Cooper Electric Part # 1017854
$584.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 600V AC, 2- Pole 3-Wire Grounding Style 1, Terminal Screws Gray and Black

Technical Information

Amperage
100 Amp
Applications
High Ampacity Connections
Conductor Size
3-1/0 AWG
Current
100 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Reversed Service,Style 1 Grounding
TC Connection
Pressure Screw Terminals
Type
Watertight
Voltage
250 Volt
Wattage
60000 Watt
Wire Count
3
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585012049
Color
Black/Gray
Environmental Conditions
Watertight
GTiN
00783585012049
Product Series
UL 1686 Class 1 Insulgrip
Product UPC
78358501204
Weight
2.8 lb

Dimensions

Height
4.9 Inch
Length
8.1 Inch
Width
5.400 in

Certifications and Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
