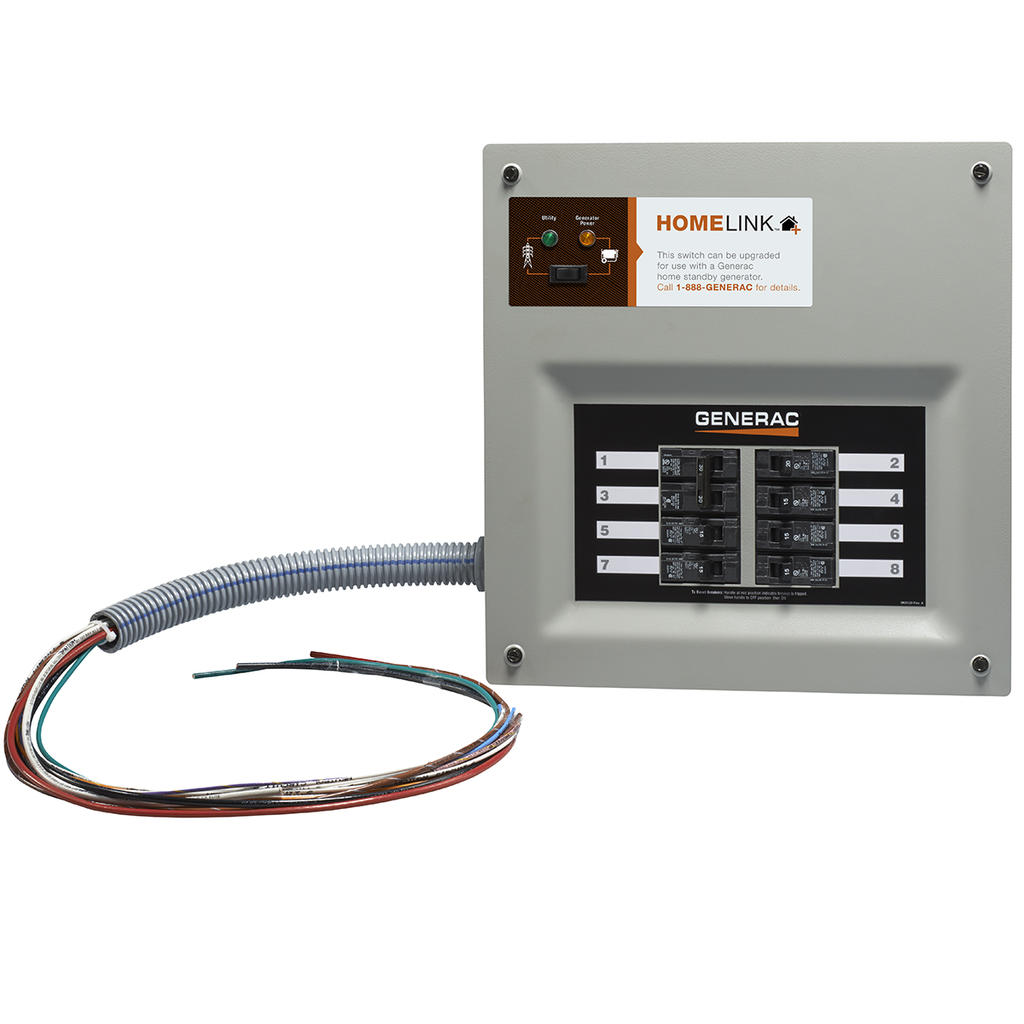

Product image for GEN 6852 30 Amp Indoor Transfer Swi
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

GEN 6852 30 Amp Indoor Transfer Swi

Manufacturer: Generac Power Systems Inc | Catalog # 6852 | Cooper Electric Part # 1017602
$422.67/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Generac.s 6852 HomeLink™ Upgradeable Manual Transfer Switch is a pre-wired electrical device that.s installed next to your home.s circuit panel. During an outage, it delivers power to hard-wired appliances (such as furnace, well pump and lights) with the push of a button, safely and easily . eliminating the need for multiple extension cords. It comes standard with 8 circuits, expandable to 10 circuits. When you.re ready to install an automatic home standby generator, a certified electrician will change out the panel located in the HomeLink with an automatic switch upgrade panel and new faceplate . and it.s ready to be connected to a home standby generator (11 kW maximum).

Technical Information

Amperage
30 Amp
Number of Poles
1 Pole
Voltage
240 VAC
Wire Size
14-0 AWG

Manufacturer Information

Brand
Generac Power Systems, Inc.

General Product Info

12-Digit UPC
696471068528
GTiN
00696471068528
Product UPC
69647106852
Used With
Portable Generators with a 30 A L14-30R Receptacle

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
USA
Features
  • 30 Amp Indoor Transfer Switch Kit
  • Upgradeable so it can later be converted to an automatic home standby transfer switch

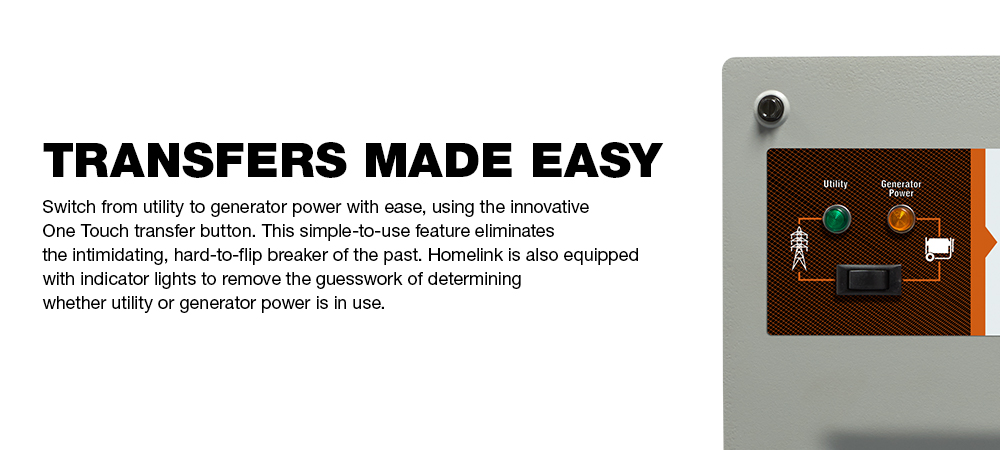

  • Power source indicator lights inform you when you have utility or generator power present
  • Powers hard-wired appliances such as your furnace, well pump, and lights
  • 8 Circuits, expandable to 10 circuits; accepts standard, tandem, GFCI, and arc fault breakers
  • Works with generators equipped with GFCI outlets (no switch neutral accessory kit required)
  • Prevents dangerous back-feeding to avoid injuring utility line workers
  • Pre-wired for quick and easy installation
