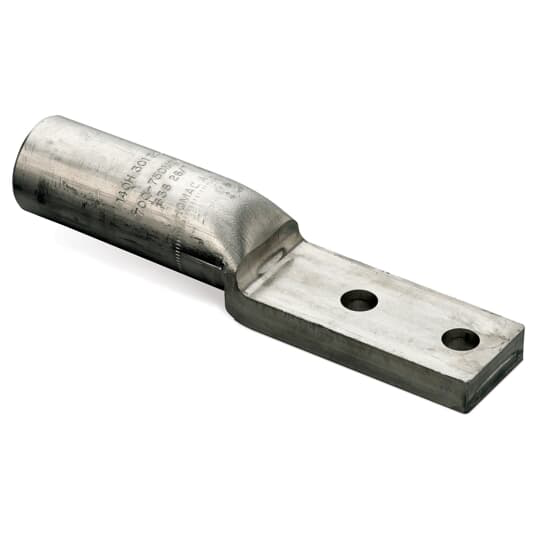

Product image for AL 2HOLE NEMA STR LUG 600
Image thumbnail 0
Image thumbnail 1
Email

AL 2HOLE NEMA STR LUG 600

Manufacturer: Blackburn / Thomas & Betts | Catalog # AL-600-N | Cooper Electric Part # 1016917
$44.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

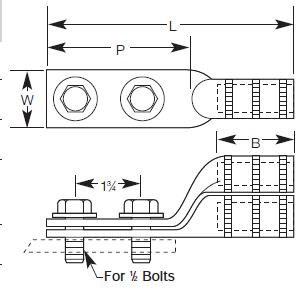

Aluminum Two-Hole NEMA Lugs - Straight Lug, 600 kcmil AL-CU and 550 kcmil and ACSR 477 (26/7) and 556.5 (18/1), Installing Dies 1 5/16, 115H, 786, 936, 473. Length 7-3/4 inch. Pad 1-3/4 inch wide x 3-5/8 inch long x 1/2 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Barrel 2-15/16 inch x 1-7/16 inch Outside Diameter. Oxide Inhibitor, Black Cap.

Technical Information

Applications
General purpose lugs for Aluminum and Copper terminations.
Conductor Size
600 kcmil
Material
Aluminum
Size
Length 7-3/4 inches
TC Connection
Compression
Type
Compression Lug Two Hole
Wire Size
600 kcmil

Manufacturer Information

Brand
Homac

General Product Info

12-Digit UPC
783786693962
GTiN
00783786693962
Product UPC
78378669396
