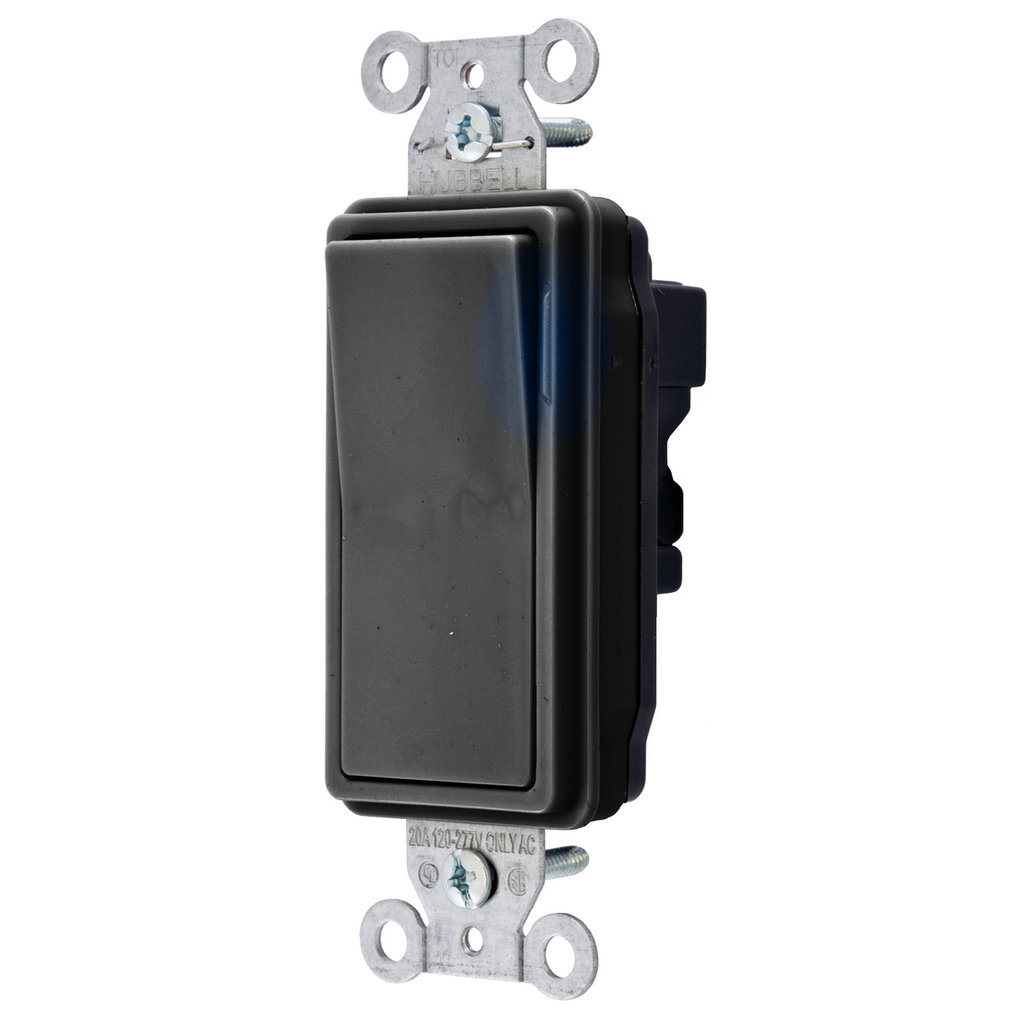

Product image for Hubbell SNAP2123ILBKNA SWITCH, SNAP, DEC3W, IL, 20A120/277, BK, NA
Image thumbnail 0
Image thumbnail 1
Email

Hubbell SNAP2123ILBKNA SWITCH, SNAP, DEC3W, IL, 20A120/277, BK, NA

Manufacturer: Hubbell Wiring Device | Catalog # SNAP2123ILBKNA | Cooper Electric Part # 1015620
$58.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches,Illuminated Three Way, 20A 120/277V AC, Black, North American.

Technical Information

Action
SPDT
Actuator
Toggle
Amperage
20 Amp
Applications
Illuminated
Base Material
Thermoplastic
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Material
Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1 Pole
Operating Cycles
50,000
Operating Temperature
-40 degrees C
Size
4.28 in x 1.44 in x 1.54 in
Standard
UL
Style
Three Way
Switch Type
Toggle
TC Connection
Connectorized
Type
Rocker/Decorator
Voltage
120-277 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585186436
Color
Black
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585186436
Product Series
Illuminated
Product UPC
78358518643

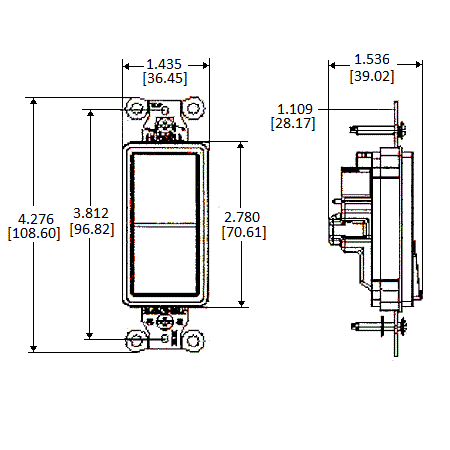

Dimensions

Height
1.54 Inch
Length
4.28 Inch
Width
1.44 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Thread cleaning captive mounting screw
  • SNAP Connect, Self-grounding, LED Indicator
  • Self-grounding staple assures continuity to wall box
