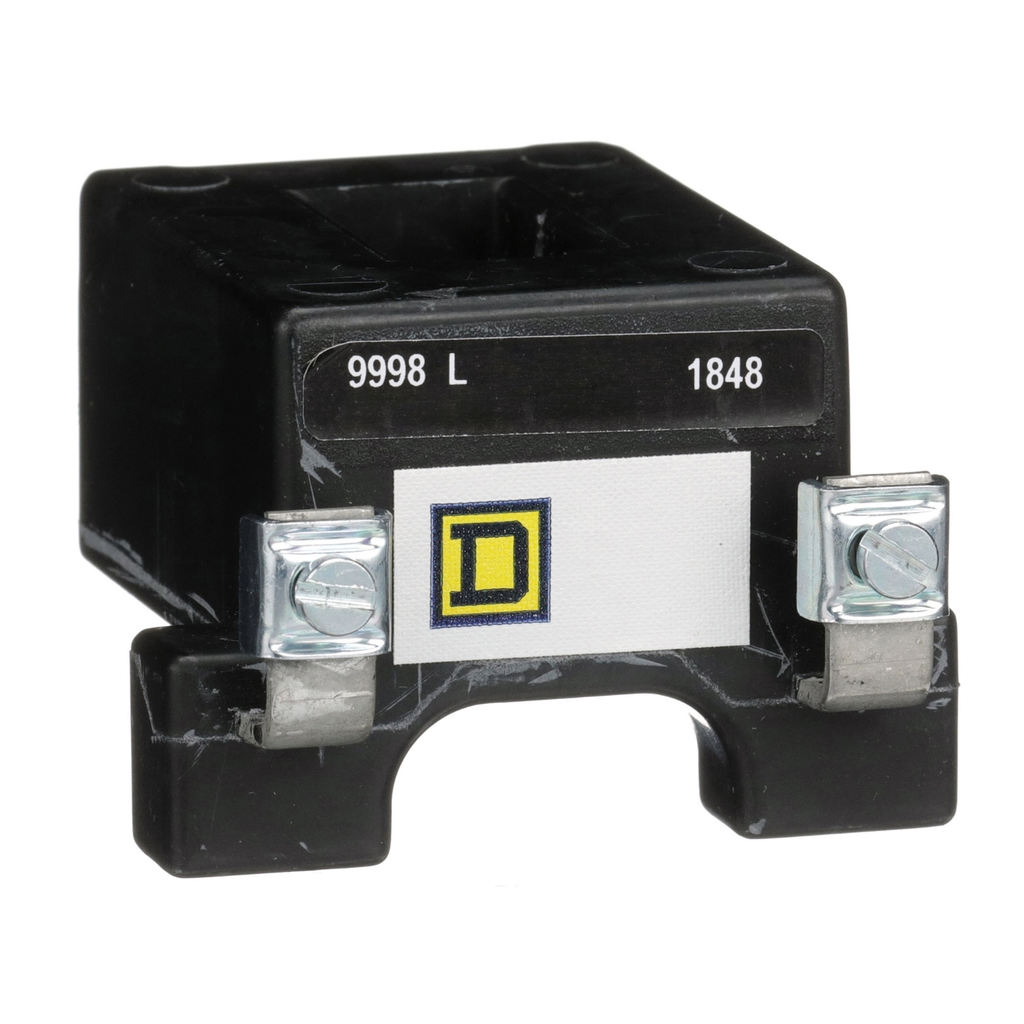

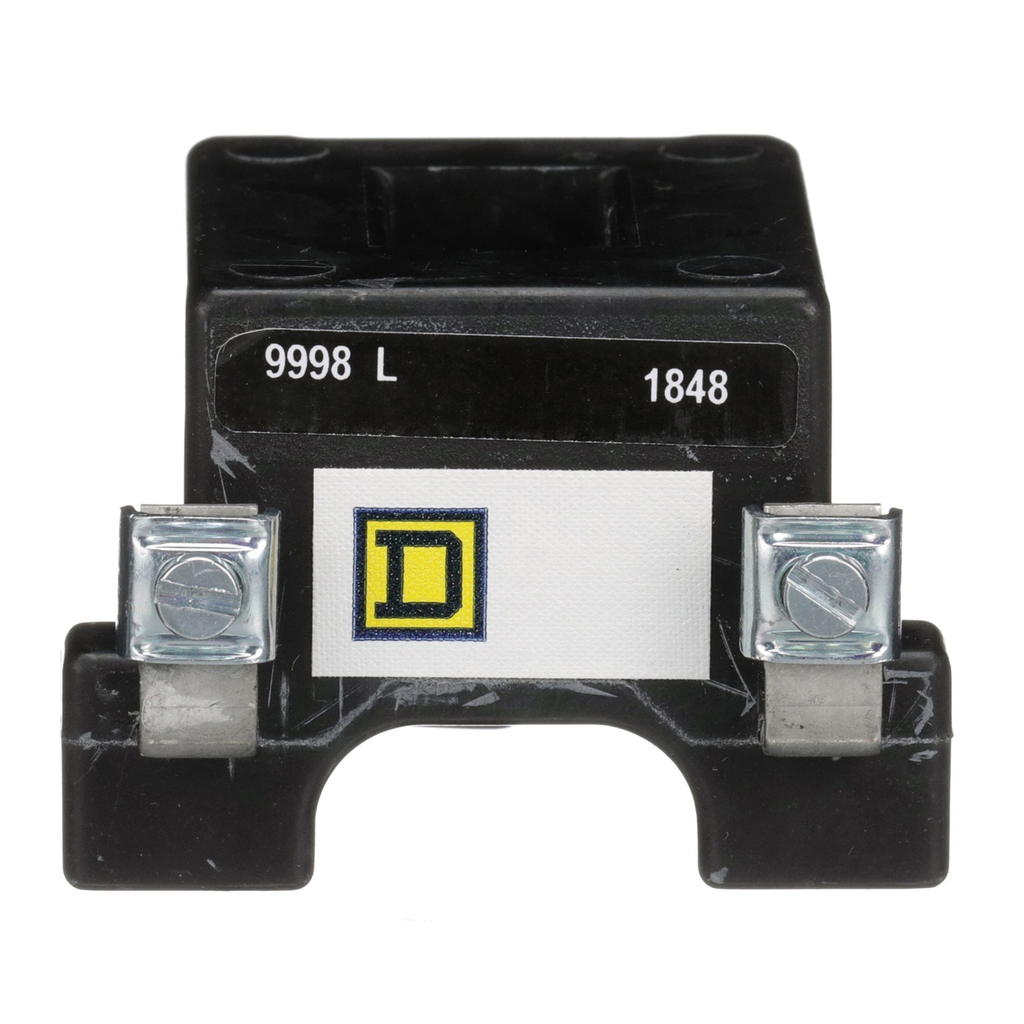

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. This will also save the cost of a whole new contactor if the coil were to fail. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 2 to 6 poles, and 8930LX, 2 to 4 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 150 VA. It has an average sealed consumption of 30 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
