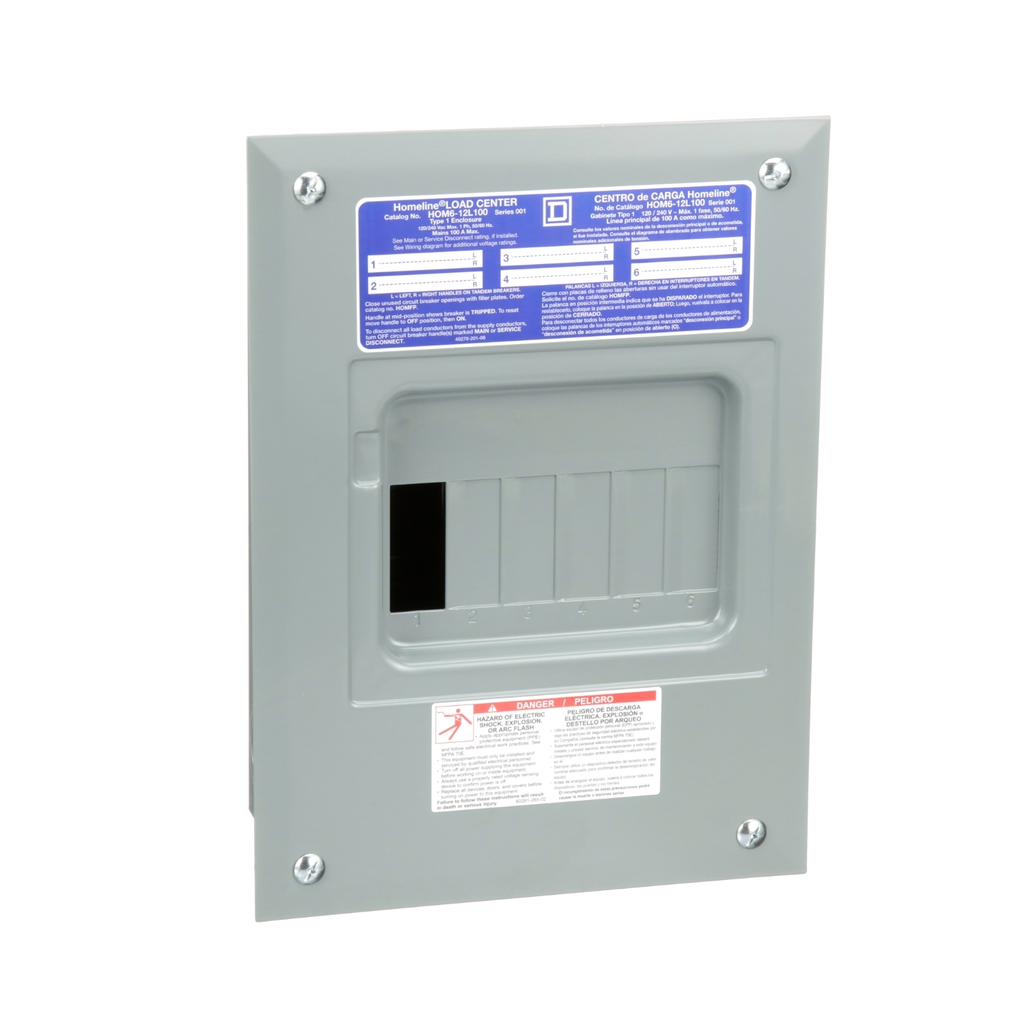

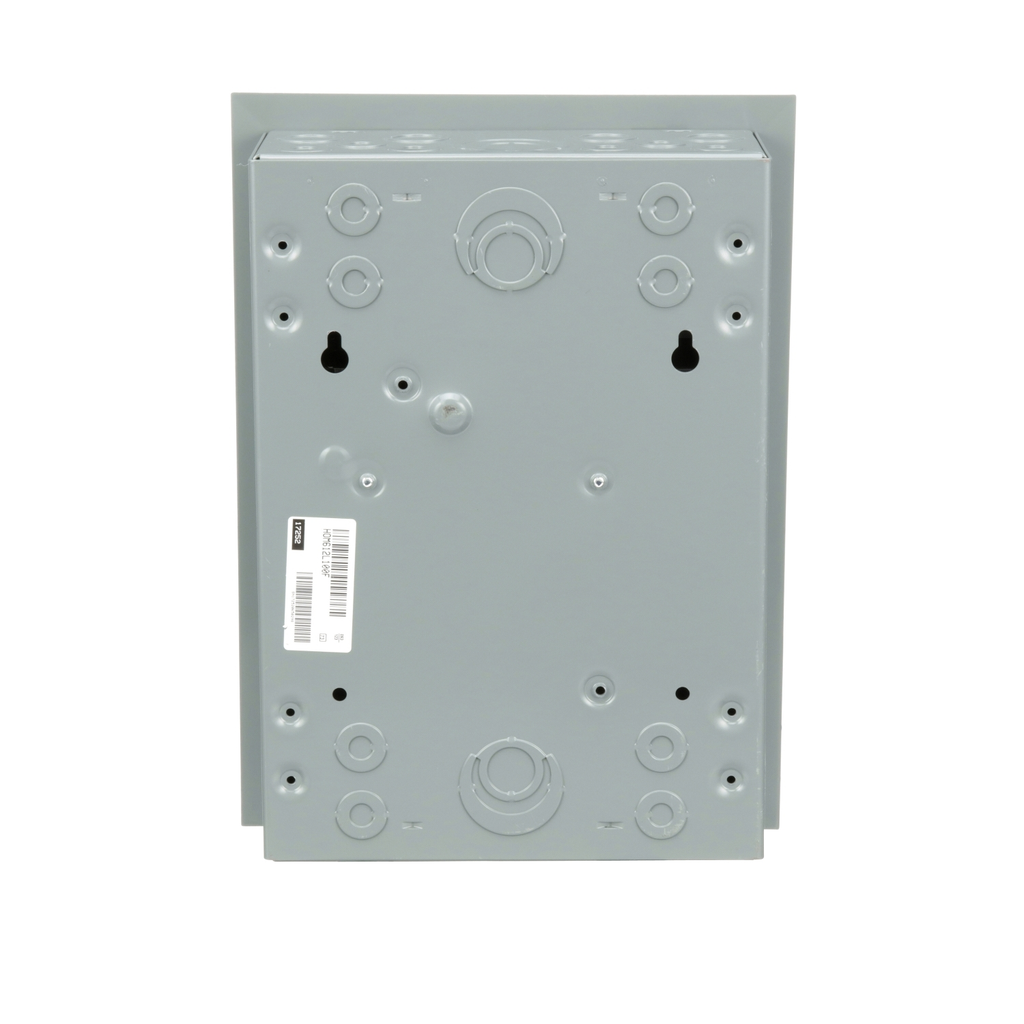

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 100A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 6 spaces in a NEMA 1 indoor enclosure. Has a flush cover. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 1 AWG copper or aluminum wire. This Homeline load center has a height of 12.55 inches, a width of 8.89 inches, and depth of 3.81 inches. Homeline load centers are UL Listed.
