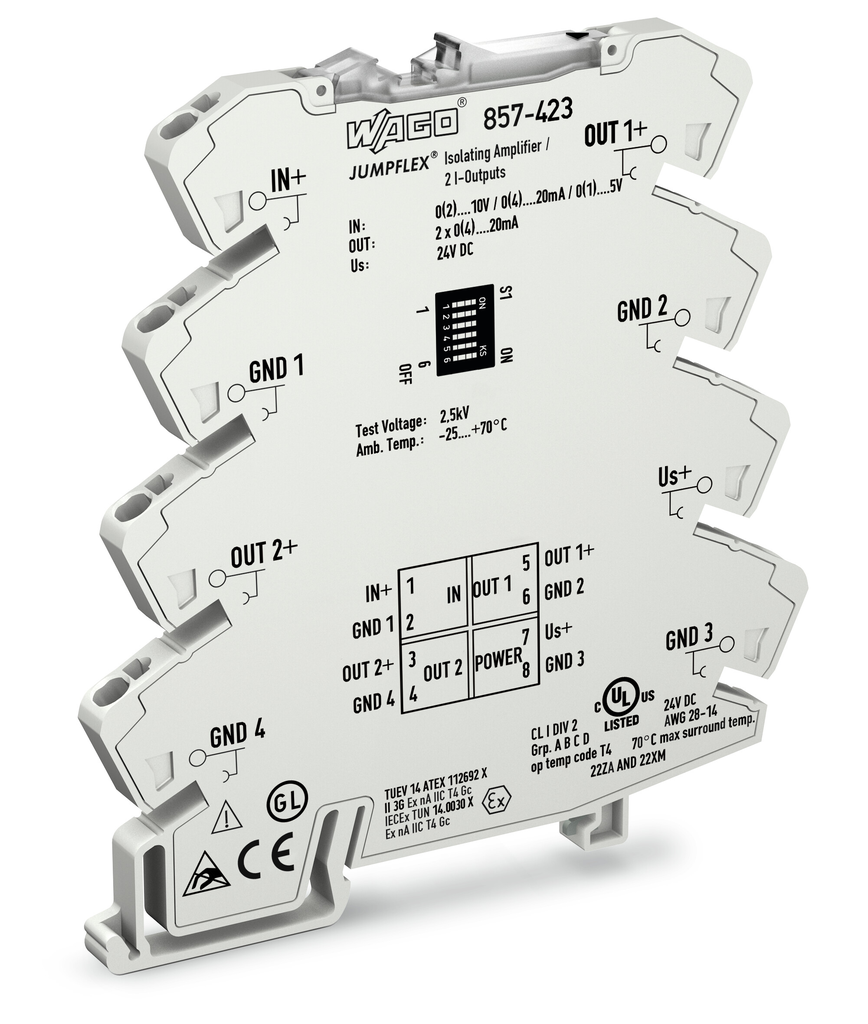

Product image for WAG 857-423 SIGNALCONDITIONER-CONFIGURA.SPLITT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

WAG 857-423 SIGNALCONDITIONER-CONFIGURA.SPLITT

Manufacturer: Wago | Catalog # 857-423 | Cooper Electric Part # 1010838
$675.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

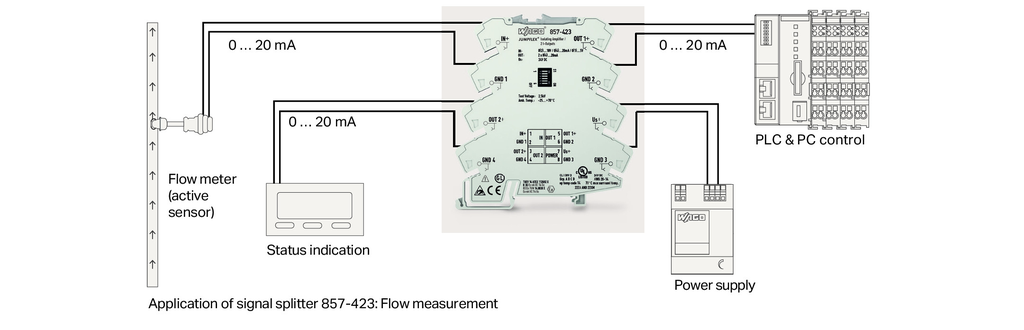

Isolation amplifier; Current and voltage input signal; 2 x current output signal; Supply voltage: 24 VDC; 6 mm module width; 2,50 mm..

Technical Information

Conductor Size
14 AWG
Mounting Type
DIN-35 Rail
Strip Length
0.39 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918110529
Product UPC
04491811052
Weight
40.604 g

Dimensions

Depth
3.71 Inch
Height
3.71 Inch
Width
0.236 in

Certifications and Compliance

Country of Origin
Germany
Approvals
  • DNV Germany GmbH, DNV, TAA00001D1, DNV-CG-0339,Aug.2021
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
  • Brjansker Zertifizierungsstelle, EAC, EAC_Certificate_RU_C-DE.AM02.B.00115_19, TP TC 020/2011
  • TUEV Nord Cert GmbH, ATEX, TV_14_ATEX_112692_XII 3 G Ex nA IIC T4 Gc, EN 60079-0
  • Polski Rejestr Statkw, PRS, TE/2186/880590/18
  • Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
  • CNEX, CCC, 2020312310000210, CNCA-C23-01
  • TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
  • Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
  • WAGO GmbH & Co. KG, UKEx, WAGO22UKEX004X, EN 60079-0
Features
  • Two configurable current outputs

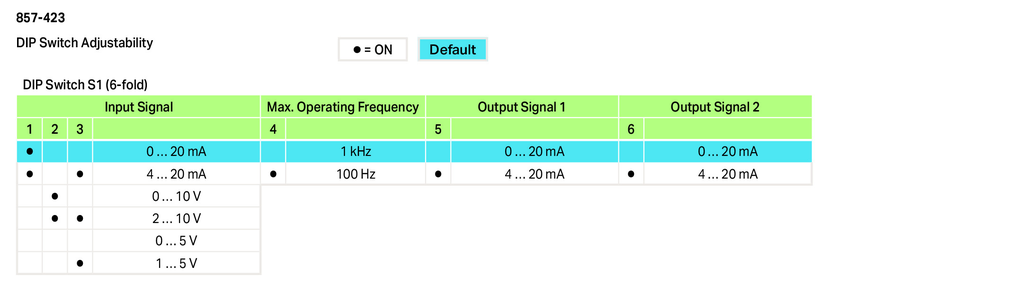

  • Calibrated measurement range switching
  • Switchable limit frequency
Accessory Products
  • 210-720
  • 249-116
  • 249-117
  • 249-197
  • 281-482
  • 787-2852
  • 793-501
  • 793-502
  • 793-503
  • 793-504
  • 793-505
  • 793-506
  • 793-566
  • 793-5501
  • 857-979
  • 857-980
  • 859-402
  • 859-402/000-005
  • 859-402/000-006
  • 859-402/000-029
  • 859-403
  • 859-403/000-005
  • 859-403/000-006
  • 859-403/000-029
  • 859-404
  • 859-404/000-005
  • 859-404/000-006
  • 859-404/000-029
  • 859-405
  • 859-405/000-005
  • 859-405/000-006
  • 859-405/000-029
  • 859-406
  • 859-406/000-005
  • 859-406/000-006
  • 859-406/000-029
  • 859-407
  • 859-407/000-005
  • 859-407/000-006
  • 859-407/000-029
  • 859-408
  • 859-408/000-005
  • 859-408/000-006
  • 859-408/000-029
  • 859-409
  • 859-409/000-005
  • 859-409/000-006
  • 859-409/000-029
  • 859-410
  • 859-410/000-005
  • 859-410/000-006
  • 859-410/000-029
  • 2009-110
  • 2009-115
