HCI USB2I USB CHRGR 2 PORT 3A 5 V I

Manufacturer: Hubbell Wiring Device | Catalog # USB2I | Cooper Electric Part # 1008254
$29.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure

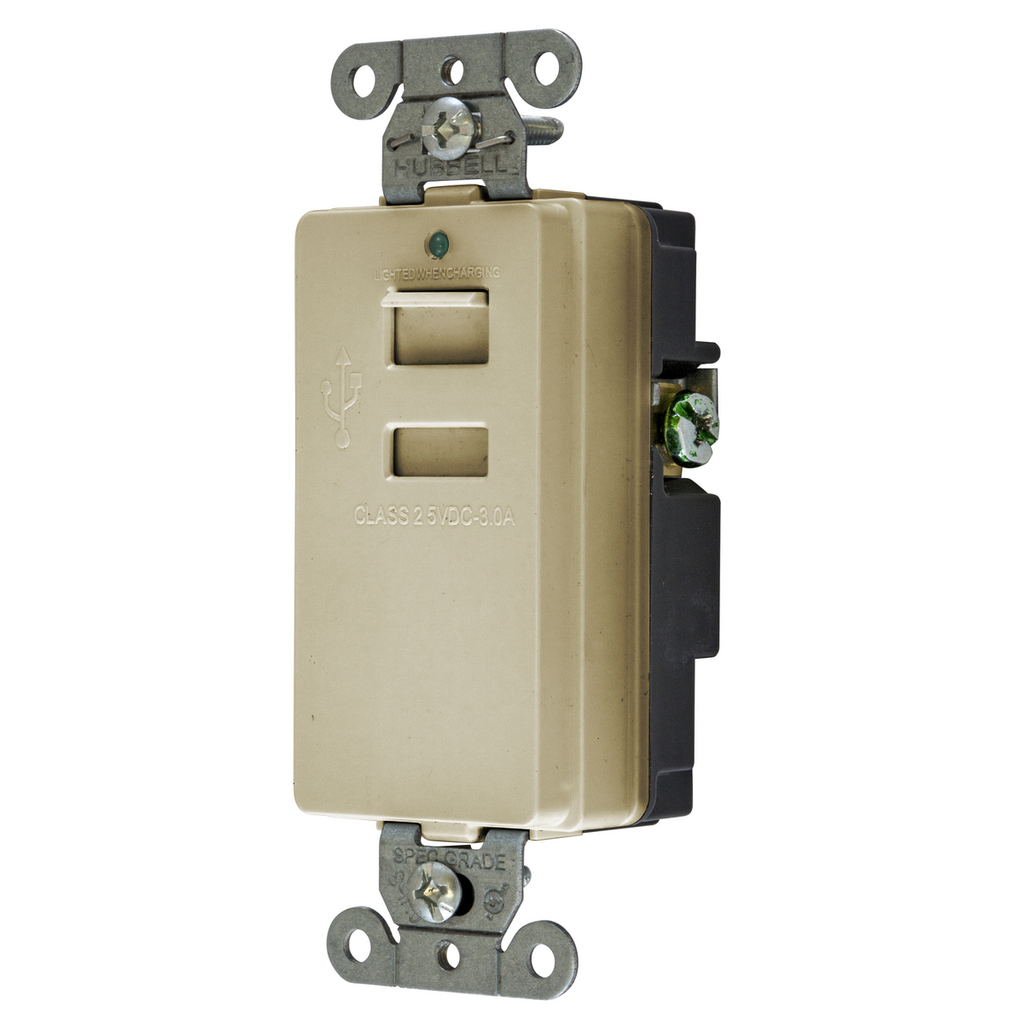

Straight Blade Devices, Receptacles, Duplex, Dual USB Type 2.0 Ports 3 Amp 5 Volt DC,Style Line Decorator, 125V, 2-Pole 3-Wire Grounding, Ivory

Technical Information

Amperage
3 Amp
Applications
Industrial, Commercial and Residential
Conductor Size
14-12 AWG
Grade
Industrial, Commercial and Residential
Material
Thermoplastic
Mounting Type
Screw
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Style
Style Line Decorator
TC Connection
Terminal Screws
Type
Decorator, USB Type-A
Voltage
5 Volt
Wattage
375 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade USB Charger Receptacle

General Product Info

12-Digit UPC
883778305207
Color
Ivory
GTiN
00883778305207
Product UPC
88377830520

Dimensions

Height
1.31 Inch
Length
4.12 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Dielectric Voltage - Withstands 1,500V minimum
  • Electrical - Feed-Through - Circuit feed-through 20 Amp, 125 Volt
  • Electrical - Rating - 3A, 5V DC
  • Environmental - Flammability - UL 5VA
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Mechanical - USB Port - Stainless steel Rated for 10,000 plug insertions and removal
Features
  • Compact depth for use in raceway, delivery systems and where space is limited
  • LED Indicator, Shallow Profile
  • 2 stainless steel ports rated for 10,000 insertions and removals
  • Switch activated port door; when open enables power; when closed, all power is switched off, for a zero no-load draw
  • Bidirectional clamp wiring allows horizontal or back entry of solid or stranded wire
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
