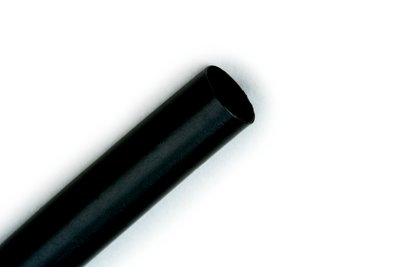

Product image for 3M FP-187-BK-6 3M Heat Shrink Thin-Wall Tubing FP-187-BK-6 Black, 3/16 in x 6 ft
Email

3M FP-187-BK-6 3M Heat Shrink Thin-Wall Tubing FP-187-BK-6 Black, 3/16 in x 6 ft

Manufacturer: 3M | Catalog # FP-187-BK-6 | Cooper Electric Part # 1008220
$38.83/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Catalog Page Product Brochure
3M Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. This comes in 6 inch pieces.

Technical Information

Dielectric Strength
900 V
Flame Retardant
Yes
Operating Temperature
-55 To 135 degrees C
Shrink Ratio
2:1

Manufacturer Information

Brand
3M Electrical Commercial and Industrial

General Product Info

12-Digit UPC
054007088806
Color
Black
Product UPC
05400708880

Dimensions

Length
6 Foot
Overview
  • 3M Thin Wall Tubing FP-301 is a heat shrinkable flexible polyolefin tubing that offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. Rated for 275(deg)F(135(deg)C) continuous operation. FP-301 tubing is typically used as a shrink-fit electrical insulation over cable splices and terminations. It is also used for lightweight wire harness covering, wire marking, wire bundling, component packaging and fire resistant covering. FP-301 clear tubing provides excellent visibility for component packing. All FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow. FP-301 is available in black, white, red, blue, yellow and clear in the standard lengths of 6-inch (15,2 cm) cut pieces, 48-inch (1,21 m) and small (8.5-inch core diameter) spools of 50 (15,24 m) and 100 (30,48 m) feet. Four-foot lengths of green tubing are available in sizes 1/16 inch to 1/2 inch. The Assorted Color Kit has a total of 133 pieces and contains seven colors: black, red, white, yellow, blue, green and clear. The Black Kit contains 102 pieces, all 6\" (512,4 mm) lengths (see chart below.)Additional sizes, colors and put-ups are available -please contact your 3M Electrical Products Sales Representative. Application Specifications: UL Recognized and CSA Certified at 600 volts at 257(deg)F(125(deg)C); UL File No. E-39100 and CSA No. 38227. MIL-I-23053/5, Class 1,2. AMS 3636 (Type I) and AMS 3637 (Type II). To Order: Reference specific product size, color and description on the following pages. Example: FP-301-1/4, white 6\" (15,2 cm) pieces.
