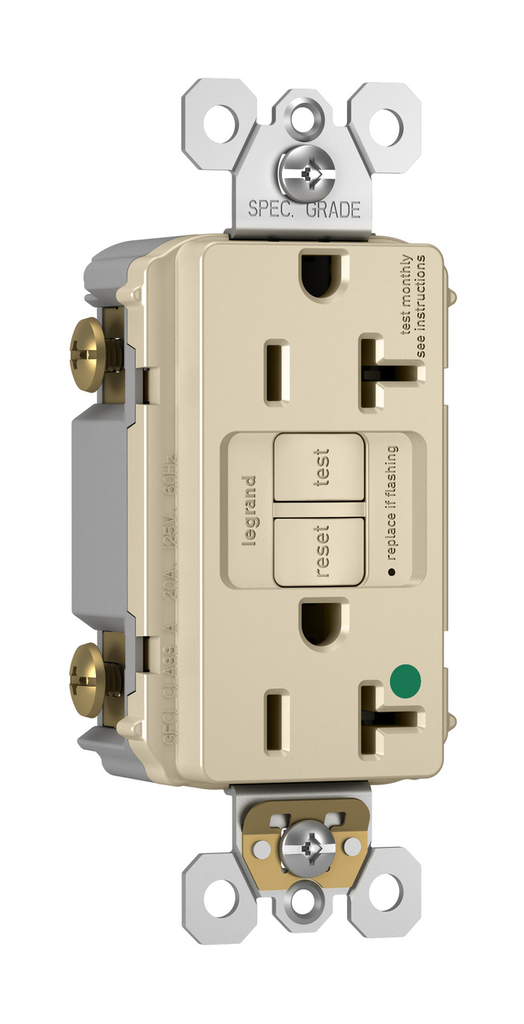

Product image for Pass & Seymour 2097-HGLA 20A 125V Self Test GFCI Hospital Grade Light Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

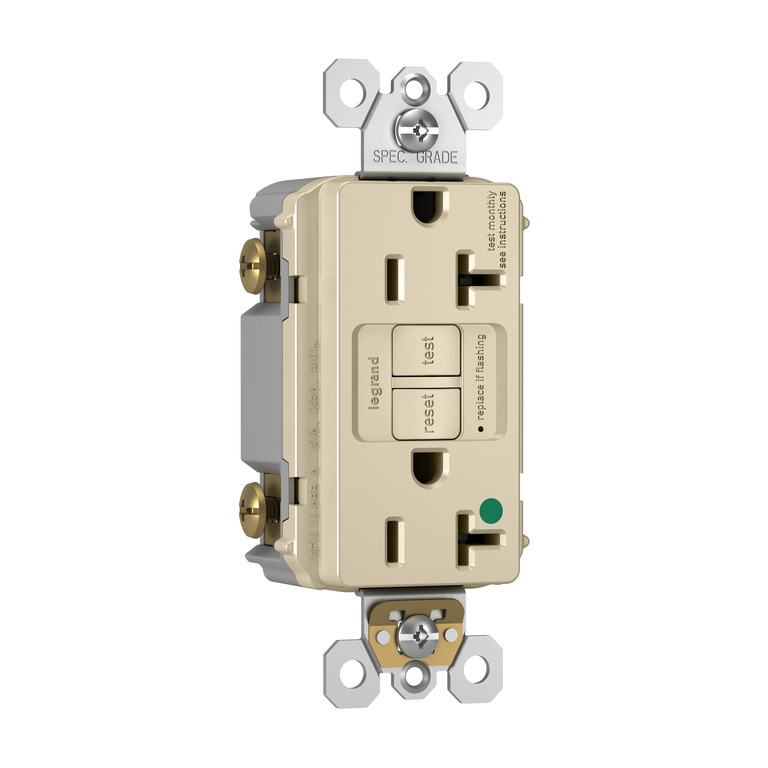

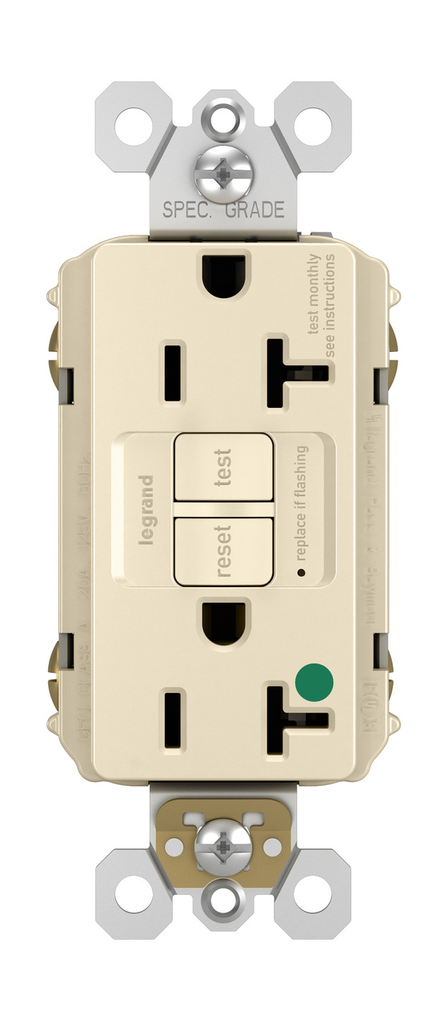

Pass & Seymour 2097-HGLA 20A 125V Self Test GFCI Hospital Grade Light Almond

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097HGLA | Cooper Electric Part # 1003413
$53.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
For Commercial, Residential Applications
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Frequency
60 Hz
Grade
Hospital
Grounding
Auto Grounding
Interrupt Rating
4.0 A
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Back and Side Wire
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Self-Test
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007035902
Color
Almond
Environmental Conditions
95% Relative Humidity
Finish
Matte
GTiN
00785007035902
Product UPC
78500703590

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Hospital Grade GFCI self-test
  • One-piece, brass, triple-wipe power contacts for lasting retention.
Certifications
  • cULus Listed
