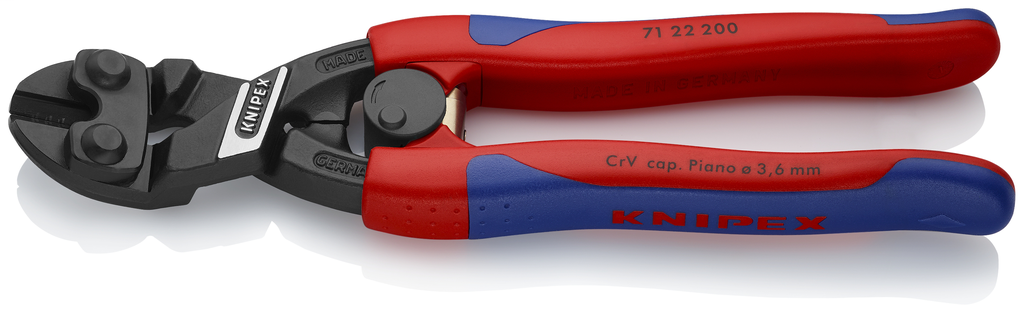

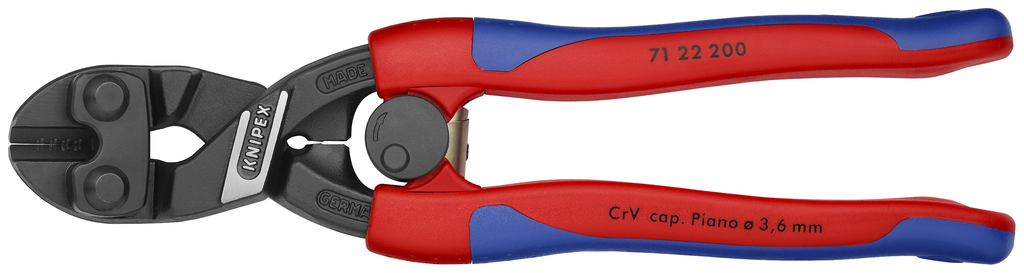

KNIPEX 71-22-200 8IN ANG MIN-BOLT CTTR

Manufacturer: Knipex Tool | Catalog # 71 22 200 | Cooper Electric Part # 1002949

$94.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters. The lever-action mechanism ensures an extremely favorable lever ratio with very little friction. The cutting force is about 20 times higher than hand force applied. Induction hardened edges cut soft, hard and piano wire. Cuts materials like bolts, nails, rivets, etc. up to 1/4" dia. Cutting edge hardness approx. 64 HRC. 20 degree angled head with single-sided joint bar and diagonal cutting edge for flush cutting; with space for gripping. Micro-structured cutting edges allow easy cutting of large cross-sections. Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64". Opening spring and locking device are integrated in the handles for comfortable work and protected transport. Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.

Technical Information

Handle Type
With Slim Multi-component Grips
Max Wire Size
5/32 in
Radius
13/64 in

Manufacturer Information

Brand
Knipex

General Product Info

12-Digit UPC
843221008246
Finish
Black
GTiN
00843221008246
Product UPC
84322100824
Weight
375 g

Dimensions

Height
24 mm
Length
200 mm
Width
62 mm
Features
  • Exceptional cutting performance - 60% less effort compared to conventional high leverage diagonal cutters
  • Induction hardened cutting edges (approx. 64 HRC) for cutting soft, hard and piano wire
  • Cuts materials like bolts, nails, rivets, etc. up to 1/4\" (6.0 mm) dia.
  • Exceptional cutting performance with minimum effort because of new lever action design
  • Micro-structured cutting edges allow easy cutting of large cross-sections
  • Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64\
  • 20? angled head with single-sided joint bar and diagonal cutting edge for flush cutting; with space for gripping
  • Straight blade
  • Opening spring and locking device are integrated in the handles for comfortable work and protected transport
  • Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
