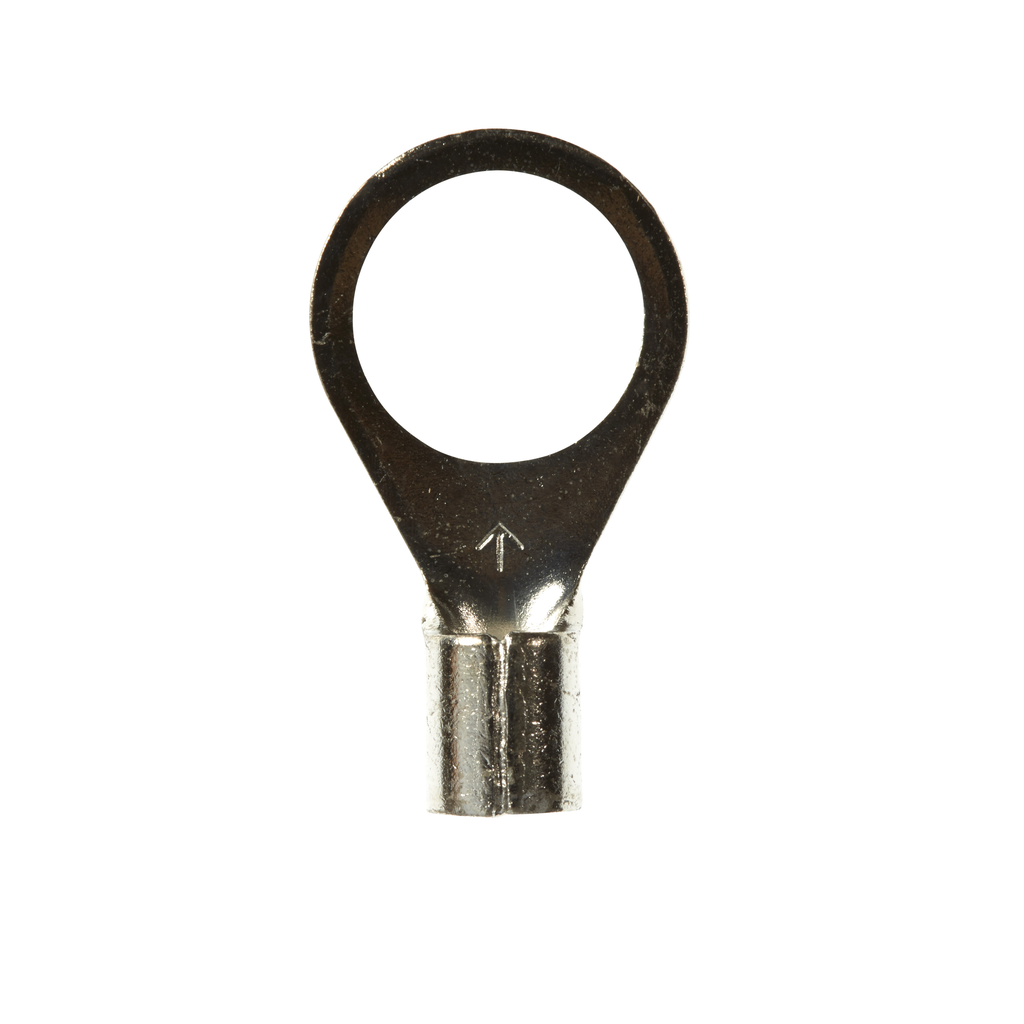

Product image for 3M Industrial Safety M10-38R/SX 12 to 10 AWG Non-Insulated Brazed Seam Ring Tongue Terminal
Email

3M Industrial Safety M10-38R/SX 12 to 10 AWG Non-Insulated Brazed Seam Ring Tongue Terminal

Manufacturer: 3M | Catalog # 7100165317 | Cooper Electric Part # 1002594
$1.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Conductor Size
10 AWG
Insulation Material
Non-Insulated
Standard
UL And CSA
Stud Size
3/8 in
Terminal Size
12 - 10 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589823
GTiN
00051128589823
Product UPC
05112858982

Dimensions

Length
0.96 Inch
Overall Length
0.96 in
Thickness
0.04 in
Width
0.54 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
