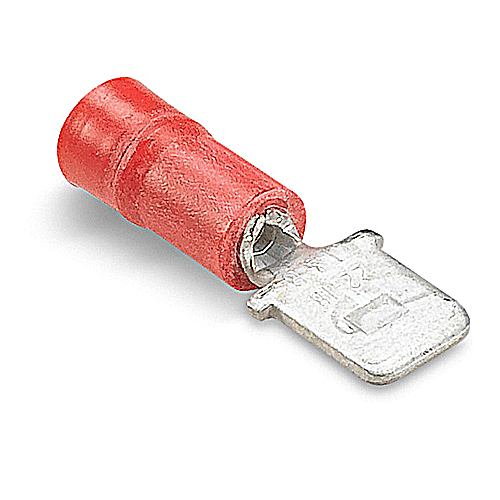

Thomas & Betts 18RAD-187 22-18 AWG Wire Range 187 Series Insulated Vinyl Male Tab

Manufacturer: ABB | Thomas & Betts | Catalog # 18RAD-187 | Cooper Electric Part # 100158
$311.96/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Vinyl-Insulated Male Tab, Length .87 Inches, Maximum Insulated .150, Tab Size .187x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Insulation Material
Vinyl
Insulation Type
Vinyl
Material
Brass
Tab Size
0.187 x 0.032 in
Temperature Rating
105 degrees C
Type
Vinyl Insulated Male Disconnect
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210828848
Color
Red
Finish
Electro-Tin Plated
GTiN
05414363935452
Product UPC
78621082884

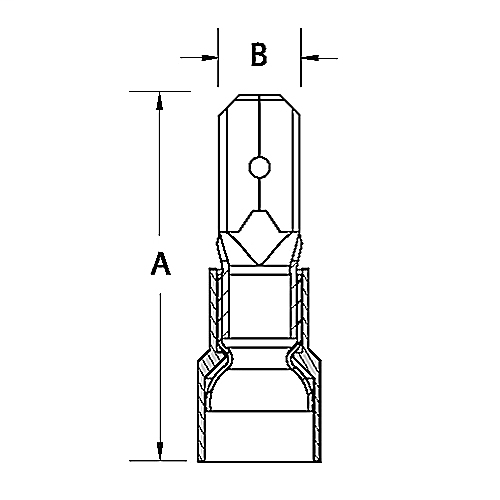

Dimensions

Length
0.87 Inch
Certifications
  • UL
  • CSA
