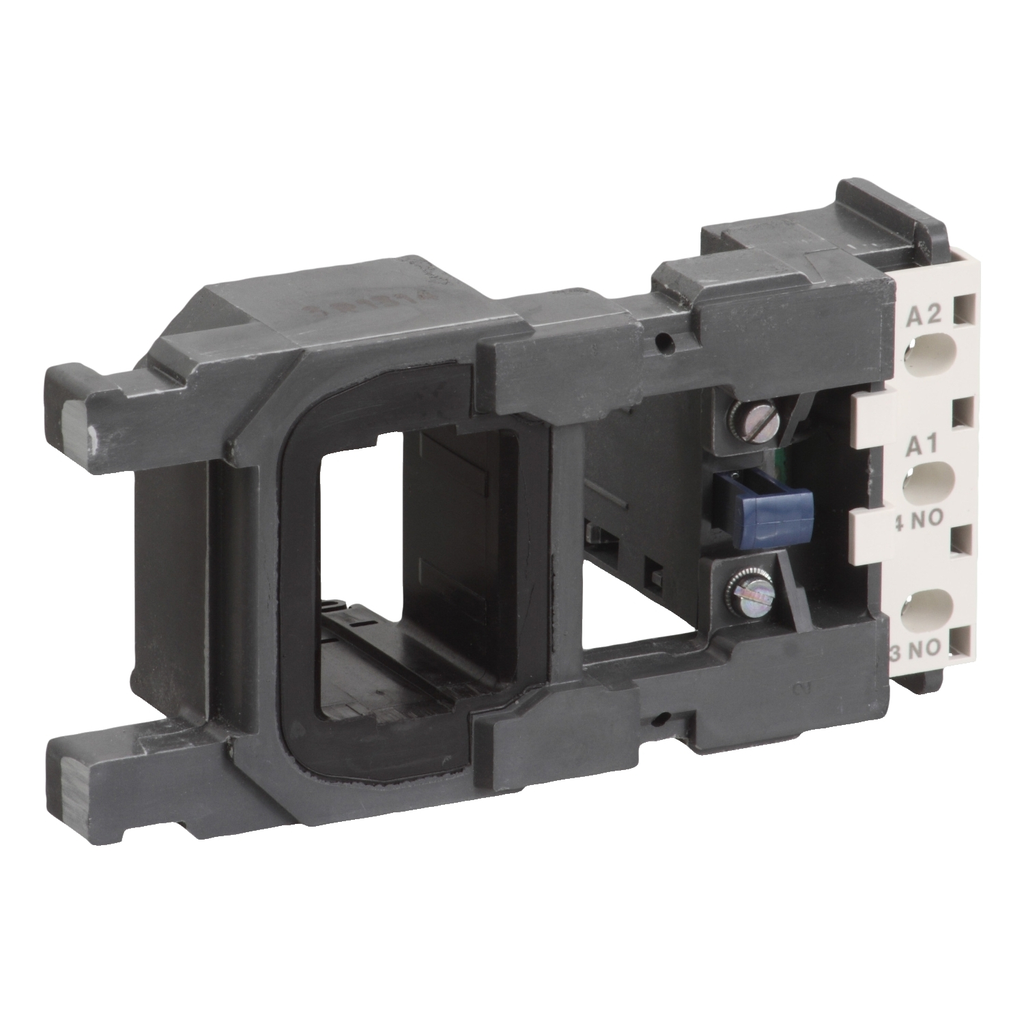

SQUARED LX1FG024 TeSys F - contacto

Manufacturer: Square-D / Schneider | Catalog # LX1FG024 | Cooper Electric Part # 1001061
$129.60 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
TeSys F AC coil 24V 50Hz (voltage code B5), for TeSys F 3-pole and 4-pole contactors LC1 F185, F225. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green P

Technical Information

Applications
LC1F225;LC1F185
Coil Voltage
240@50Hz V
Net Weight
0.55 kg
Operating Cycles
2400 cyc/h 131 F (55 C)
Operating Temperature
-5-55 Adegrees C
Range
TeSys
Type
Contactor coil

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS F

General Product Info

12-Digit UPC
785901623151
GTiN
03389110083200
Product UPC
78590162315
Weight
0.55 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Country of Origin
Czechia
Uc Control Circuit Voltage
  • 24 V AC 50 Hz
Heat Dissipation
  • 18-24 W 50 Hz
Range Compatibility
  • TeSys TeSys F LC1F contactor
Maximum Operating Rate
  • 2400 cyc/h 55 °C
Carbon Footprint Of The Installation Phase A5
  • 0.0003999825873412172
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.3 kg CO2 eq.
  • 0.28693227533080673
Operating Time
  • 20...35 ms closing
  • 7...15 ms opening
Control Circuit Type
  • AC 50 Hz
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.9 kg CO2 eq.
  • 0.9122731131826548
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 69 kg CO2 eq.
  • 68.82266544572599
Carbon Footprint Of The Distribution Phase A4
  • 0.049774529084509175
  • 0 kg CO2 eq.
Average Resistance
  • 0.18 Ohm 20 °C
Control Circuit Voltage Limits
  • drop-out 0.35...0.55 Uc 50/60 Hz 55 °C)
  • operational 0.85...1.1 Uc 50/60 Hz 55 °C)
  • operationa
Hold In Power Consumption In Va
  • 55-55 VA 50 Hz cos phi 0.3 (at 20 °C)
Inrush Power In Va
  • 805-805 VA 50 Hz cos phi 0.3 (at 20 °C)
Product Compatibility
  • LC1F225
  • LC1F185
