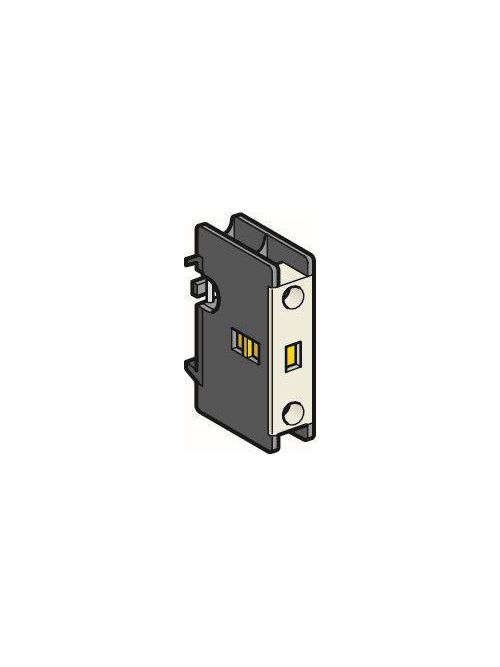

Product image for Square D LADN10 690 VAC 10 Amp 2-Pole 1NO Front Mount Screw Clamp Terminal Contactor Auxiliary Contact
Image thumbnail 0

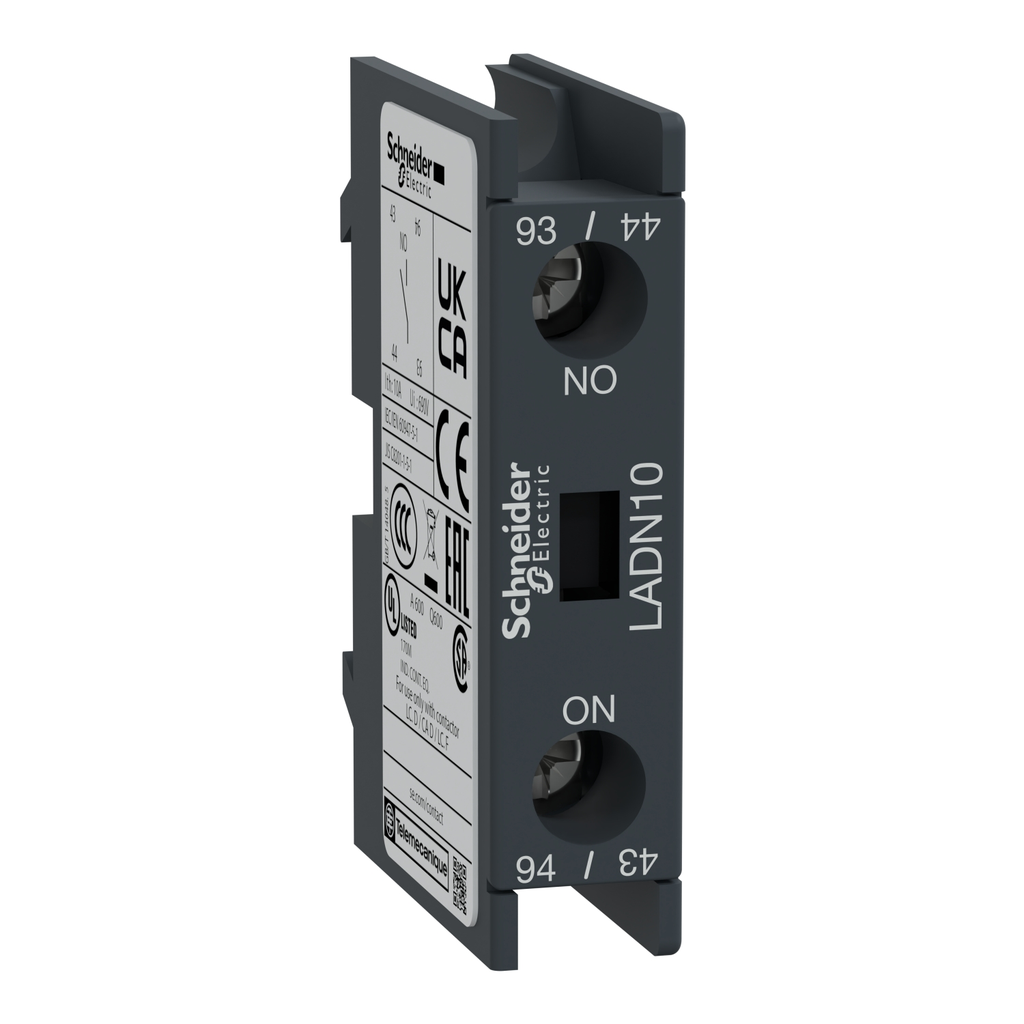

Image thumbnail 2
Email

Square D LADN10 690 VAC 10 Amp 2-Pole 1NO Front Mount Screw Clamp Terminal Contactor Auxiliary Contact

Manufacturer: Square-D / Schneider | Catalog # LADN10 | Cooper Electric Part # 100055
$15.57/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
LADN10 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. Front mounting block, it provides 1NO instantaneous contact rated up to 10A 690V AC. LADN10 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. It provides 1NO instantaneous contact rated up to 10A 690V AC. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Add-on block with 1NO auxiliary contact, with instantaneous operation. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys D and TeSys F contactors.

Technical Information

Applications
CR1F
Coil Voltage
690 V AC 25...400 HZ
Contact Configuration
1 NO
Contact Rating
10 A 60 AC
Net Weight
0.02 kg
Operating Temperature
-5-60 Adegrees C
Range
TeSys
Size
1.38 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5,UL 60947-5-1
Storage Temperature
-60-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITHOUT CABLE END
Type
Auxiliary contact block
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys D;TeSys Deca

General Product Info

12-Digit UPC
389110383747
Color
Gray
GTiN
03389110383744
Product UPC
78590121362
Weight
0.02 kg

Dimensions

Depth
35 mm
Height
48 mm
Warranty Length
18 mth
Width
13 mm

Certifications and Compliance

Certifications
CB,CCC,CSA,EAC,UKCA,UL
Country of Origin
France
Compatible Products
  • LC1D80M7
Cross Sell Products
  • GV2AF3
