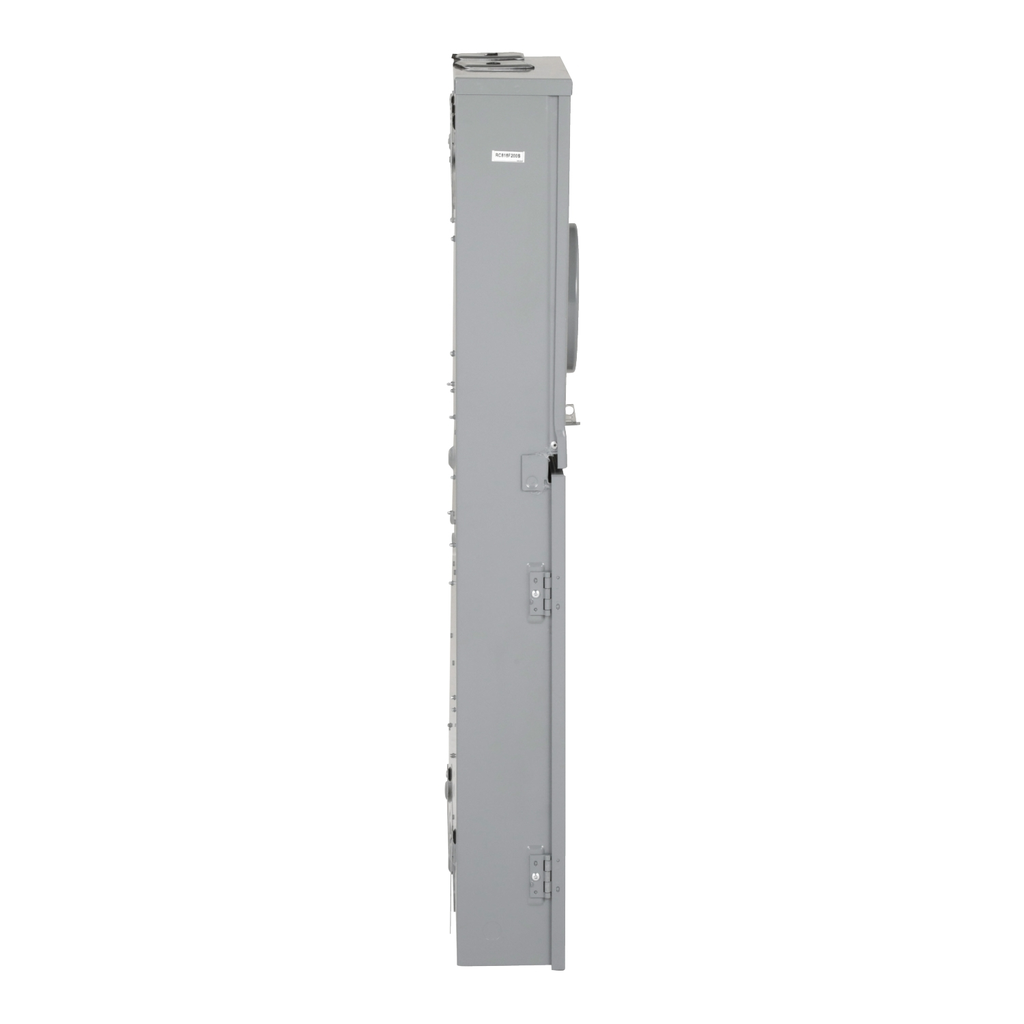

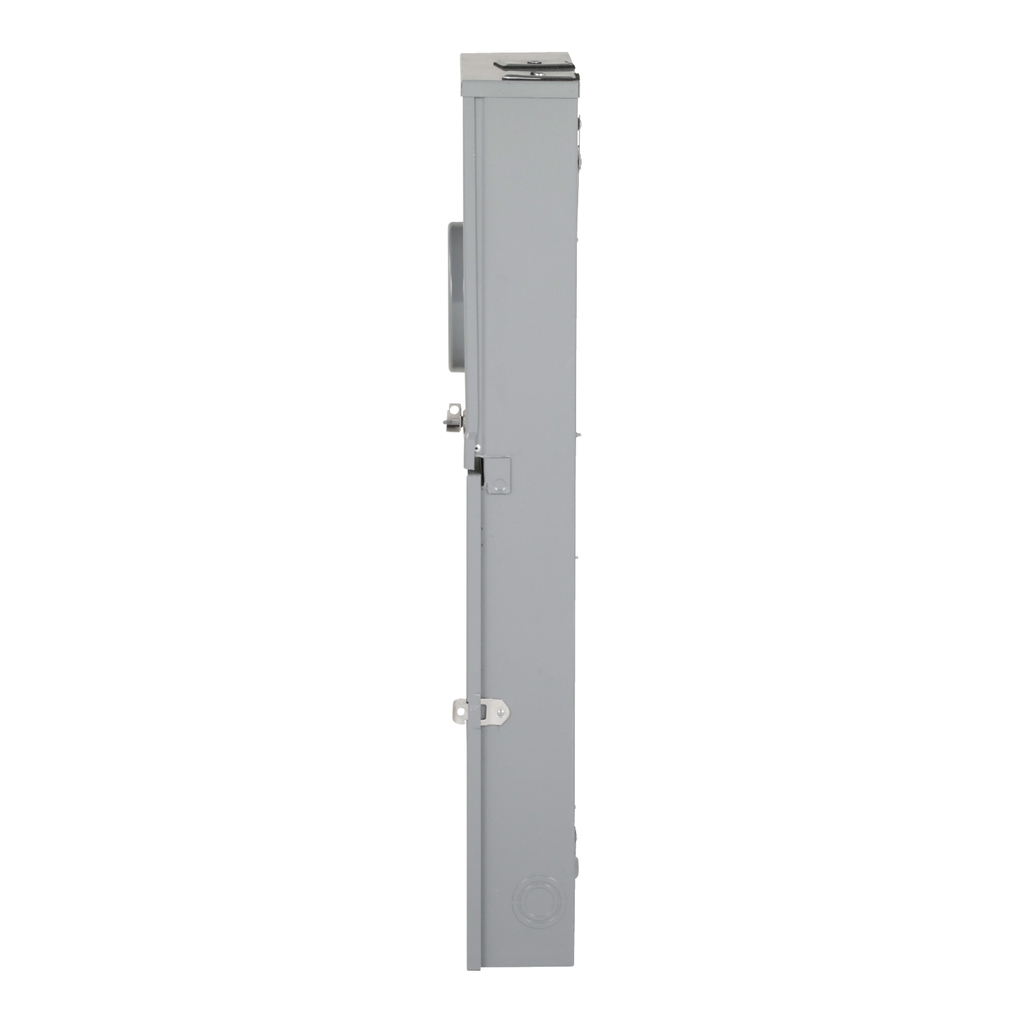

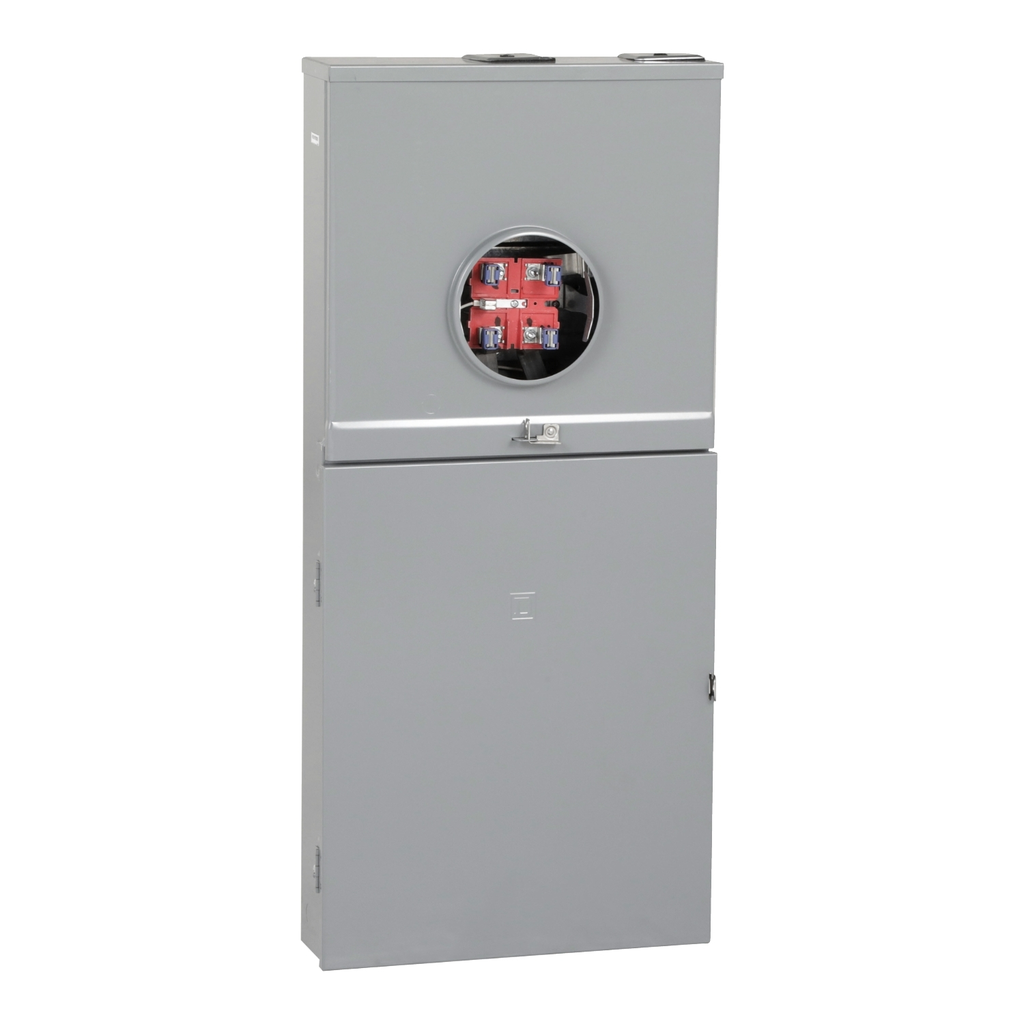

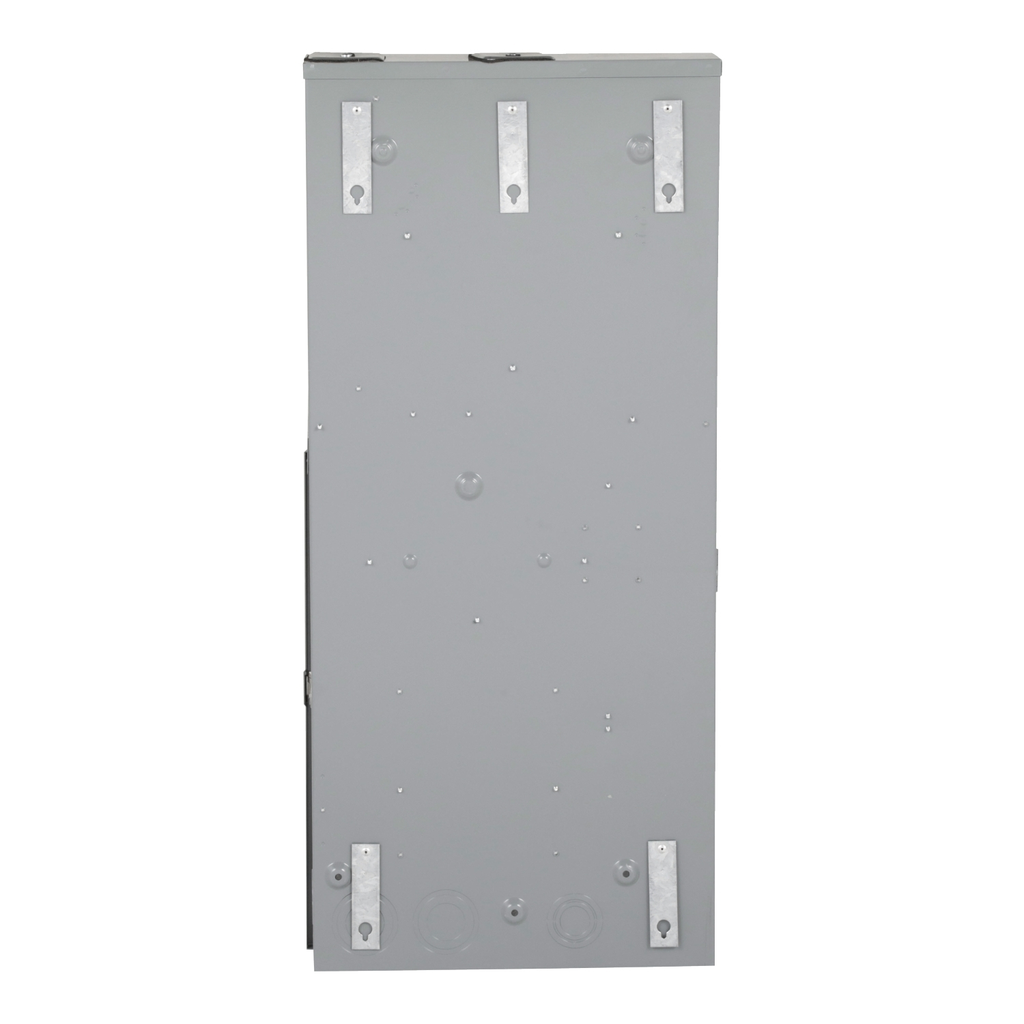

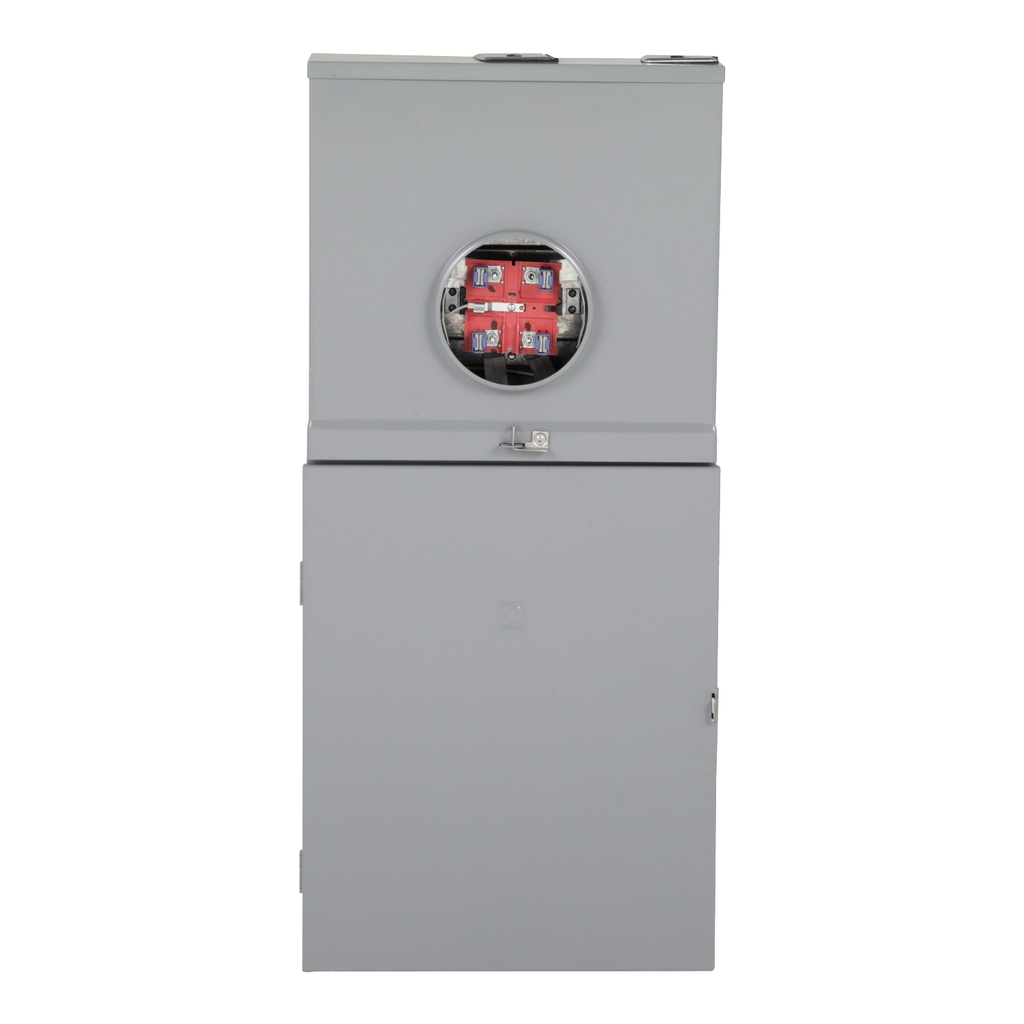

Square D RC816F200S 200 Amp OH/UG Surface Ringless Meter Main

Manufacturer: Square-D / Schneider | Catalog # RC816F200S | Cooper Electric Part # 1000520
$1,312.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Flexible design meets a wide range of outdoor residential application and makes installation easy. This allows Square D meter mains to used where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and/or provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains available in ring or ringless styles This meter main is rated at 200 A and 22 kA. It is a ringless design with 8 spaces and 16 circuits. This Square D meter main also is with overhead/underground feed, and surface mount only.

Technical Information

Amperage
200 Amp
Cable Entry
OH-UG
Conductor Size
8-2/0 AWG
Line Rated Current
200 A
Mounting Type
Surface (outdoor)
Number of Circuits
16
Number of Phases
1 Phase
Number of Spaces
8
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Size
18.76 IN,41.16 IN
Type
METER MAINS,RINGLESS
Wire Size
AWG 8...AWG 2/0 aluminium/copper)service ground;AWG 6...350 kcmil aluminium/copper)line side

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901946540
GTiN
00785901946540
Product UPC
78590194654

Dimensions

Depth
5.41 Inch
Height
41.16 Inch
Warranty Length
18 mth
Width
18.76 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL E-6294
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HOM2175SB
  • LK100AN
  • QOM2200VH
  • HEPD25
  • HOM120CAFI
  • LK225AN
  • HEPD50
  • HOM120DF
  • HEPD80
  • HOM120
  • HOMFP
  • A125
  • HOM230
  • A150
  • A200
  • A250
  • PK15GTA
