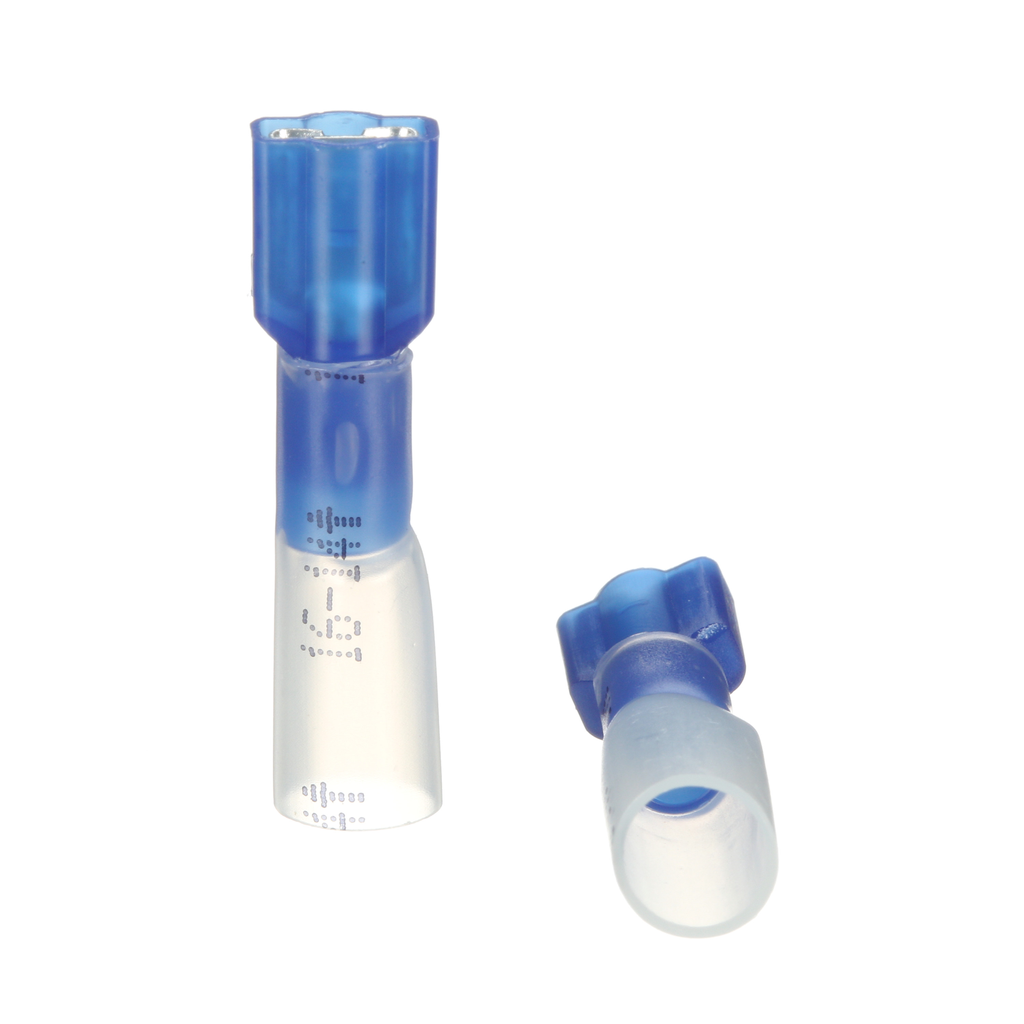

Product image for 3M MNHU14-250DFIX 25/Bottle Heat Shrink Nylon Insulated Female Disconnect
Email

3M MNHU14-250DFIX 25/Bottle Heat Shrink Nylon Insulated Female Disconnect

Manufacturer: 3M | Catalog # 7000133391 | Cooper Electric Part # 1000139
$2.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Female Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the female part over male. It has good corrosion resistance, improved mechanical performance, and is both versatile and easy to use. It has dents and rolled edges to offer good holding force, while allowing for a quick disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified.

Technical Information

Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Nylon
Material
Heat Shrink
Max Operating Temperature
105.0 degrees C
Tab Size
1/4 in
Terminal Size
16 - 14 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
E1 Plus Solid State Relay

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589076
Color
Blue
GTiN
00051128589076
Product UPC
05112858907

Dimensions

Diameter
0.23 Inch
Length
1.2 Inch
Overall Length
1.2 in
Thickness
0.032 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Mates with 0.25-in wide male tab
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
